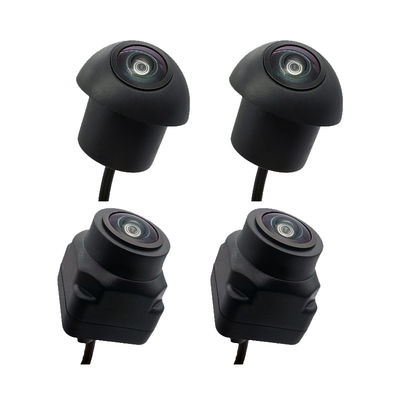

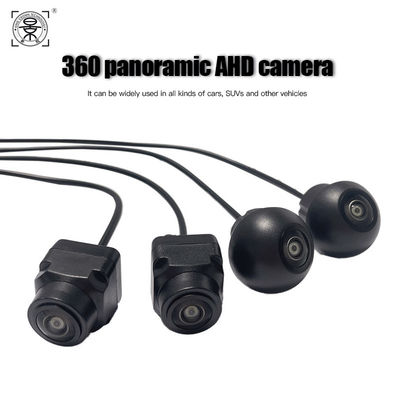

This HD four-way surround view camera set is a dedicated accessory for car Android radios, comprising four fisheye cameras installed at the front, rear, left, and right positions of the vehicle. After image stitching and distortion correction, it generates a complete 360-degree panoramic bird's-eye view displayed on the Android head unit screen. It effectively eliminates vehicle blind spots and helps drivers observe curbs, pedestrians, and obstacles clearly when parking or passing narrow roads. Powered by DC 12V, this panoramic camera kit is a practical safety upgrade for aftermarket car modification.
| Product Type | 360 Degree Four Way Panoramic Surround View Camera Kit |
|---|---|
| Camera Resolution | 1080P AHD |
| View Angle | 170° Fisheye Wide Angle |
| Night Vision | Starlight low-light night vision |
| Waterproof Rating | IP67 |
| Voltage | DC 12V |
| Lens | Fisheye glass lens |
| Screen Size | Display on user's existing Android radio screen |
| Wired or Wireless | Wired |
| Working Temperature | -20℃ ~ +70℃ |
| Vehicle Compatibility | Sedans, SUVs, MPVs, most 12V passenger cars with compatible Android radio |
Four fisheye cameras collect video signals from four directions around the car. After algorithm stitching, it forms a seamless overhead bird's-eye view covering the whole perimeter of the vehicle. Drivers can check obstacles, curbs, and pedestrians on all sides at a glance, greatly reducing blind spot risks during parking and low-speed turning.
Equipped with a starlight image sensor, the cameras capture bright and distinguishable images in dim environments such as underground parking lots and night streets. It does not rely on extra LED fill lights, maintaining stable imaging performance in twilight and rainy nights for reliable surrounding monitoring.
Each camera adopts a sealed waterproof structure with an IP67 protection rating. The shell prevents rainwater splashing, dust, mud, and sediment from entering the internal circuit. It can work continuously and stably in rainy, dusty, and humid outdoor environments for long-term vehicle use.
The system supports automatic view switching linkage. When reversing, the rear view pops up automatically; when turning on the indicator light, the corresponding side view is displayed. Users can also manually switch between split view and full panoramic view on the Android radio according to driving demands.
This panoramic camera accessory is mainly customized for 12V passenger cars such as sedans, SUVs, and MPVs. It is not suitable for 24V heavy trucks, large buses, and engineering vehicles. It is a popular upgrade solution for private car refitting shops and auto aftermarket dealers.
