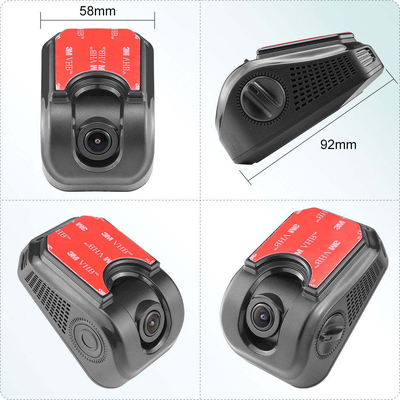

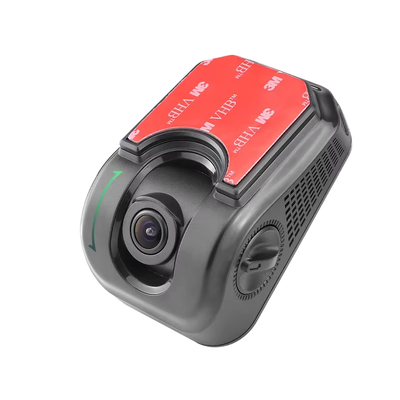

This universal AHD 1080P front camera is engineered for windshield mounting and serves as the core image collector of ADAS systems for trucks and buses. It supports flexible angle adjustment to capture complete forward road information and transmits high-quality AHD signals to MDVR and ADAS controllers. With a wide voltage range and anti-vibration structure, it delivers consistent video data to trigger safety alerts. This front-view camera helps reduce forward collision and lane drift accidents, greatly improving active safety for long-haul fleets and public transport vehicles.
| Product Type | Windshield Mount ADAS Front View Camera |
|---|---|
| Camera Resolution | AHD 1080P |
| View Angle | 120° Adjustable Wide Angle |
| Night Vision | Starlight Low-light Night Vision |
| Waterproof Rating | IP65 |
| Voltage | DC 12V–24V |
| Lens | WDR HD Optical Lens |
| Screen Size | No built-in screen; matches ADAS host & MDVR |
| Wired or Wireless | Wired, AHD analog signal |
| Working Temperature | -20°C ~ +70°C |
| Vehicle Compatibility | Truck, Bus, Heavy Commercial Vehicle |
This ADAS front camera can coordinate with rear and side cameras to build a full surround monitoring solution. It provides reliable forward vision data, complementing other camera channels to cover all blind zones around large vehicles for safer driving and reversing.
Equipped with a high-sensitivity starlight sensor, the camera maintains clear road outlines in dim conditions. It avoids infrared light reflection on glass and provides valid image signals for ADAS identification during night trips.
The compact sealed casing reaches IP65 protection level. It resists cabin dust, moisture and temperature fluctuation, ensuring stable operation inside the cab all year round.
When connected to compatible MDVR and ADAS equipment, the front channel can display independently. It will automatically pop up the warning view once the system detects potential forward collision or lane departure risks.
Anti-shock shell and wide voltage range are customized for trucks and buses. It is a reliable active safety upgrade for logistics fleets, passenger bus operators and commercial vehicle refitting projects.
