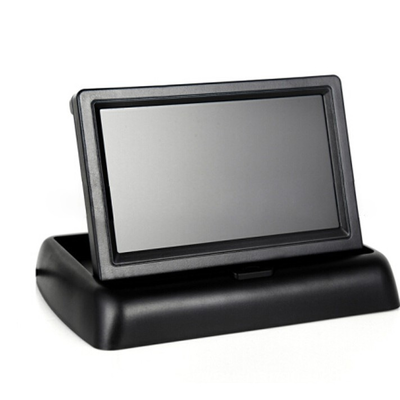

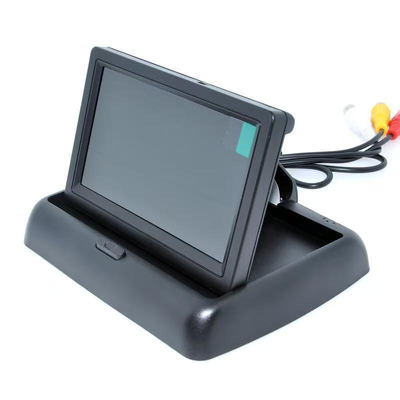

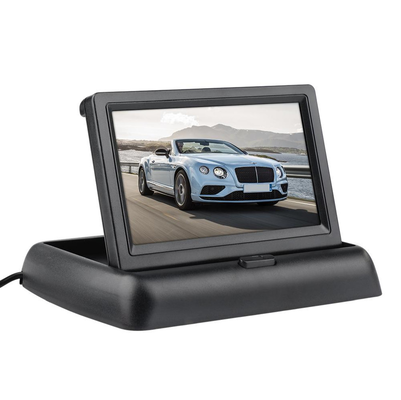

This 4.3 Inch Digital TFT LCD Foldable Car Monitor is purpose-built to pair with vehicle reverse rear view cameras. Its foldable structure lets the compact TFT LCD display fold away when not in use, keeping the windshield clean and unobstructed. The monitor receives video signal from a backup camera and shows the real-time rear scene while reversing. With strong sunlight readability, it performs reliably in everyday driving conditions. Simple installation and broad compatibility make it a cost-effective safety upgrade for sedans, SUVs, and vans — helping reduce rear blind spots and prevent reversing accidents.
| Category | Value |
|---|---|
| Product Type | 4.3 Inch Digital TFT LCD Foldable Car Monitor |
| Camera Resolution | Supports CVBS / AHD 720P camera input |
| View Angle | N/A (monitor; depends on matched camera) |
| Night Vision | N/A (depends on matched rear view camera) |
| Waterproof Rating | IP20 (indoor use only, monitor) |
| Voltage | DC12V |
| Lens | N/A |
| Screen Size | 4.3 Inch TFT LCD |
| Wired or Wireless | Wired video input |
| Working Temperature | -20℃ ~ +70℃ |
| Vehicle Compatibility | Universal for 12V passenger cars, sedans, SUVs, and vans |
This foldable 4.3 inch TFT LCD monitor supports single-channel video input for rear view. It connects to one rear camera for reversing monitoring and can be upgraded to a multi-camera setup to view different vehicle sides, helping drivers observe surrounding conditions during low-speed maneuvers.
Night vision performance is determined by the paired rear view camera. The TFT LCD screen presents a clear low-light image transmitted from an infrared backup camera, so drivers can check obstacles behind the vehicle safely during night parking and reversing.
The monitor main unit is designed for interior installation with an IP20 rating, protecting the screen from minor dust. It must not be exposed directly to rain. The matched rear camera can use an IP67 waterproof casing for outdoor mounting on the vehicle tail.
The monitor automatically turns on and switches to the rear view image once the vehicle shifts into reverse gear. Users can also manually turn the display on or off as needed, offering convenient one-touch control for daily reversing operations.
This foldable TFT LCD monitor is primarily developed for 12V passenger vehicles, sedans, SUVs, and light vans. It can also be used on some light-duty commercial vehicles with a 12V power supply, serving as an affordable rear view display for aftermarket safety retrofits.
