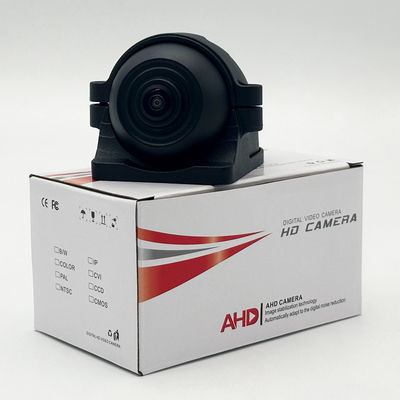

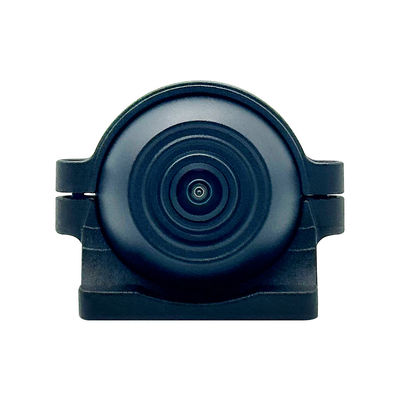

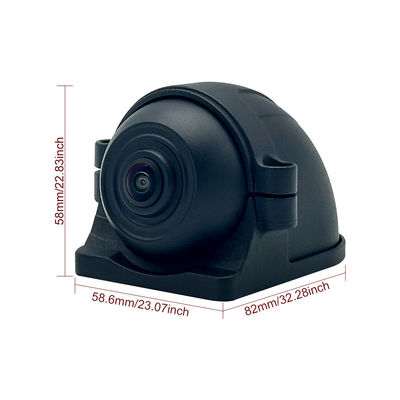

Heavy Duty Truck Bus Onboard Camera, 12-36V Wide Voltage, Night Vision CVBS Type Backup Camera for Reverse Vision System

Product Description

Heavy Duty Truck Bus Onboard Camera

This heavy-duty onboard backup camera is specially designed for reversing vision systems of trucks and buses. It supports ultra-wide DC12-36V working voltage, which can match different power supply configurations of various commercial vehicles. Adopting classic CVBS analog signal output, it can work seamlessly with most analog rear view monitors.

Key Features

Ultra-wide 12-36V voltage range, compatible with various heavy-duty truck and bus power systems
Standard CVBS analog signal, good compatibility with traditional reverse vision monitors
Built-in infrared night vision, deliver clear rear images in dark and low-light environments
Robust heavy-duty housing with shockproof design, adapt to rough and bumpy road conditions
Wide-angle lens, clearly capture rear scene to assist reversing and avoid collision hazards
Simple installation and wiring, convenient for commercial vehicle refitting and fleet upgrade

Technical Specifications

Category	Specification
Product Type	Heavy Duty Onboard Backup Camera
Image Sensor	HD Analog Sensor
Signal Format	CVBS
Working Voltage	DC12V~36V
Night Vision	IR Infrared Night Vision
Lens	Wide Angle Lens
Working Temperature	-30℃ ~ +70℃
Applicable Vehicles	Heavy Duty Truck, Bus, Commercial Vehicles
Core Function	Reversing Auxiliary & Rear View Monitoring

Detailed Feature Highlights

12-36V Ultra-wide Voltage Design

This onboard camera supports DC12-36V ultra-wide input voltage, covering power supply specifications of most light and heavy commercial vehicles. No extra voltage converter is required during installation, reducing modification cost and wiring complexity. Built-in overvoltage protection and reverse polarity protection circuit prevent chip burnout caused by unstable vehicle power supply, ensuring reliable continuous operation for mixed fleets with multiple vehicle models.

Standard CVBS Analog Signal with High Compatibility

The camera outputs standard CVBS analog video signal, widely compatible with traditional analog monitors and reverse vision systems. CVBS analog signal has strong adaptability for long-distance wiring on large commercial vehicles, less prone to signal attenuation. It realizes smooth real-time image preview, perfectly matching old-style analog monitoring equipment for truck and bus retrofit projects.

IR Infrared Night Vision for Low-light Scenarios

Built-in infrared LED lights automatically turn on when ambient brightness decreases. In night, dusk or dim parking lots, the camera captures clear rear images. Optimized infrared lamp layout avoids overexposure and dark dead zones, helping drivers identify obstacles, pedestrians and cargo behind vehicles when reversing, improving driving safety in dark conditions.

Wide-angle Lens for Rear View Observation

Equipped with professional wide-angle lens to expand the rear monitoring field of view. It helps drivers judge the distance between vehicle and obstacles, effectively reduce rear collision risks during reversing and low-speed movement. Provides intuitive visual reference for daily driving safety of heavy commercial vehicles.

Heavy-duty Shockproof Housing for Rough Roads

The camera adopts rugged heavy-duty casing. Internal optical and electronic components are fixed with shock-absorbing structure to absorb continuous vibration and jolts on bumpy roads. It avoids image flickering, poor contact and signal interruption, maintaining stable picture output in long-distance transportation of trucks and buses.

Easy Wiring & Fast Installation

The camera features simple wiring structure. It can be quickly mounted on vehicle tail or rear bumper with matched brackets. Suitable for after-market vehicle refitting and fleet safety upgrade projects, saving installation labor and time cost.
