Features Gallery Product Description Request A Quote

Features

Specifications

Highlight:

1080P AHD wired backup camera

IP69K waterproof reversing camera

night vision vehicle reversing camera

Basic Infomation

Place of Origin: China

Brand Name: KINGCROWN

Certification: ROHS

Payment & Shipping Terms

Packaging Details: Export standard package

Delivery Time: 45 days

Payment Terms: L/C,T/T

Supply Ability: 1000sets/month

Gallery

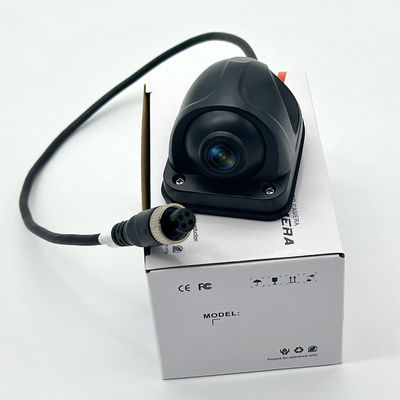

1080P AHD Wired Reverse Rear View Backup Camera System, Guide Line IP69K No Water Leakage Night Vision Vehicle Reversing Camera

Product Description

1080P AHD Wired Reverse Rear View Backup Camera System

This high-performance reversing safety solution for commercial vehicles delivers stable, high-definition monitoring with advanced waterproof and night vision capabilities.

Key Features

AHD 1080P high-definition wired signal transmission for stable, delay-free reversing monitoring
Built-in adjustable parking guide lines to assist distance judgment and collision avoidance
IP69K top-grade waterproof rating ensures zero water leakage under high-pressure washing
Professional night vision design captures clear rear scenes in low-light environments
Rugged shock-resistant housing adapts to commercial vehicle vibrations
DC12-24V wide voltage compatibility for trucks, buses, vans and large vehicles

Technical Specifications

Product Type	AHD Wired Rear View Backup Camera System
Resolution	AHD 1080P
Waterproof Rating	IP69K, No Water Leakage
Night Vision	IR Infrared Night Vision
Function	Adjustable Parking Guide Line
Signal Type	Wired AHD
Working Voltage	DC12-24V
Working Temperature	-30℃ ~ +70℃
Applicable Vehicles	Truck, Bus, Van and other commercial vehicles
Matching Device	Vehicle Monitor / Mobile MDVR
Installation	External rear wired mounting

Advanced Performance Features

Stable AHD 1080P Wired Signal Transmission

Utilizing wired AHD analog high-definition transmission technology, this camera prevents signal interference and picture delay common in wireless systems. It transmits 1080P high-definition images over long distances, maintaining sharp video for real-time preview and MDVR recording. Clear display of obstacles, road edges, and pedestrian outlines provides reliable visual safety for large vehicle reversing.

Adjustable Parking Guide Line for Distance Judgment

The built-in parking guide line function marks distance reference areas behind the vehicle, helping drivers quickly estimate remaining distance to barriers during reversing. This reduces blind spot misjudgment and prevents scratching or collision accidents, particularly beneficial for large trucks and buses with extensive blind zones.

IP69K Top Waterproof Grade with Zero Water Leakage

Featuring the highest waterproof protection level for vehicle exterior cameras, the fully integrated sealing process resists high-temperature, high-pressure water jet washing. Internal PCB boards are coated with conformal coating for moisture-proof and anti-corrosion protection, significantly reducing failure rates in outdoor long-term installations.

High Performance IR Night Vision for Low-light Monitoring

Infrared LED lights automatically activate in low-light conditions, generating clear rear view images in dark nights, dim warehouses, or underground parking areas. Optimized infrared lamp layout balances image brightness to avoid overexposure and dark shadows, enabling clear identification of pedestrians and obstacles behind the vehicle.

Heavy-duty Shockproof Housing Structure

Constructed with sturdy materials and built-in shock absorption, the camera withstands continuous vibration and jolts from bumpy logistics roads. This prevents image flickering, signal interruption, and loose wiring problems, ensuring stable operation during long-distance commercial vehicle transportation.

12-24V Wide Voltage & Surge Protection Circuit

Wide DC12-24V input voltage supports both 12V light commercial vehicles and 24V heavy-duty vehicles. Built-in reverse connection protection and surge suppression chips filter voltage spikes and current fluctuations during engine starts and stops, protecting image sensors and circuit chips from burnout in mixed fleet operations.
