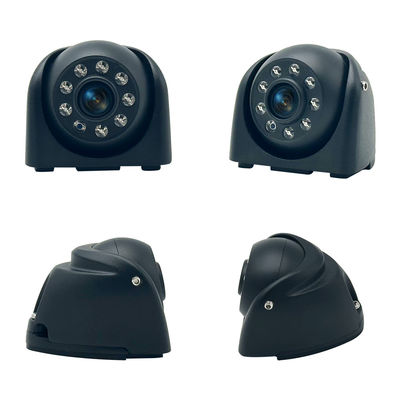

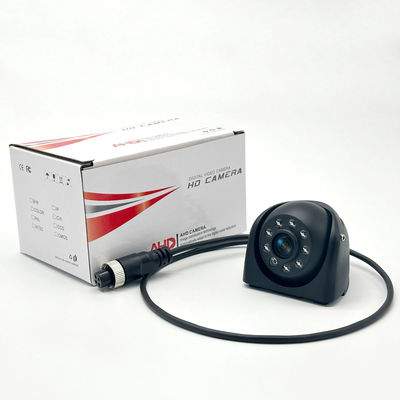

Hot Sale Sony CCD AHD Reverse Camera 700TVL Night Vision 720P 1080P Resolution Backup Camera for HeavyDuty Truck

Product Description

Heavy Duty Sony CCD AHD Reverse Backup Camera

Professional-grade reversing camera specifically engineered for heavy-duty truck safety monitoring with superior image quality and rugged construction.

Key Features

Premium Sony CCD image sensor delivering 700TVL analog signal with optional AHD 720P/1080P HD output
Excellent night vision performance for clear imaging in low-light and dark driving conditions
Rugged heavy-duty metal housing with strong impact resistance for harsh environments
IP68 waterproof sealed structure resistant to rain, mud, dust, and high-pressure washing
Adjustable wide-angle lens to effectively reduce rear blind spots on large trucks
DC12-24V wide voltage design for stable operation across all heavy-duty truck power systems

Product Overview

This professional Sony CCD AHD reverse backup camera is specially engineered for heavy-duty truck safety monitoring. Equipped with high-quality Sony CCD sensor technology, it supports 700TVL analog signal and optional AHD 720P/1080P high-definition resolution to meet diverse monitoring and recording requirements. The integrated night vision function delivers clear rear view images during night transportation and dim working environments. Built with heavy-duty metal casing and IP68 waterproof rating, this camera withstands mud, dust, and all-weather outdoor conditions. The wide-angle lens effectively eliminates large vehicle blind spots, while the 12-24V wide voltage compatibility ensures reliable performance with truck monitors and MDVR systems.

Technical Specifications

Category	Specification
Product Type	Heavy Duty Sony CCD AHD Reverse Backup Camera
Image Sensor	Sony CCD Sensor
Resolution	700TVL, Optional AHD 720P / 1080P
Night Vision	IR Infrared Night Vision
Waterproof Rating	IP68
Lens	Wide Angle Glass Lens
Working Voltage	DC12-24V
Signal Mode	CVBS 700TVL / AHD Optional
Working Temperature	-30℃ ~ +70℃
Applicable Vehicles	Heavy-duty Trucks
Matching Device	Truck Monitor / Mobile MDVR
Housing Material	Heavy-duty Metal Shell

Advanced Performance Features

Premium Sony CCD Image Sensor with Dual Signal Option

Utilizes high-quality Sony CCD sensor technology delivering stable 700TVL analog CVBS signal with optional AHD 720P/1080P high-definition output. Compared to standard CMOS chips, the Sony CCD sensor provides superior light sensitivity, enhanced color restoration, and minimal image distortion. Captures road obstacles, rear vehicle outlines, and road marking details with exceptional clarity, compatible with both legacy and modern truck MDVR and monitor equipment for flexible project integration.

Powerful IR Night Vision for Night Truck Transportation

Integrated infrared LED lights automatically activate when ambient brightness decreases. In complete darkness such as highways, warehouses, or parking yards, generates clear monitoring images to assist truck drivers in identifying pedestrians, barriers, and obstacles behind vehicles. Optimized infrared light distribution prevents localized overexposure and shadow dead zones, maintaining balanced image brightness for safe reversing and low-speed heavy truck operations.

Heavy-duty Solid Metal Housing for Harsh Environments

Constructed with reinforced metal shell structure providing superior anti-collision and scratch resistance compared to plastic cameras. Withstands gravel splashing, minor impacts, and extreme temperature fluctuations during long-distance logistics transportation. The robust housing protects internal optical and electronic components, significantly extending service life under demanding heavy-duty truck operating conditions.

IP68 Fully Sealed Waterproof & Dustproof Construction

Features complete IP68 waterproof housing design with internal PCB circuit boards coated with conformal protection for moisture resistance, anti-corrosion, and salt spray protection. Withstands heavy rainfall, mud splashing, and high-pressure water cleaning during truck maintenance. The sealed construction effectively prevents water and dust ingress, reducing short circuit risks and equipment failure for long-term exterior installation.

Wide-angle Lens Reduces Heavy Truck Blind Spots

Professional wide-angle glass lens expands rear monitoring field of view significantly. Heavy-duty trucks typically have substantial rear blind areas, and this wide-angle design covers more surrounding territory. Drivers can observe pedestrians and obstacles more intuitively during reversing and low-speed maneuvers, substantially reducing collision risks and enhancing driving safety for large commercial vehicles.

12-24V Wide Voltage & Built-in Surge Protection Circuit

Supports wide DC12-24V input voltage range compatible with both 12V and 24V heavy-duty truck power systems. Integrated reverse polarity protection and surge suppression circuitry filters instantaneous voltage spikes and current fluctuations generated during engine startup and shutdown. Prevents chip burnout and ensures continuous stable operation for mixed fleet projects with multiple heavy truck models.
