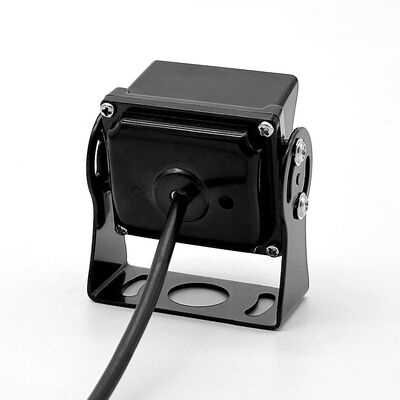

AHD Sensor 2053 Chip 1080P 4PIN Rear View Backup Camera
This professional AHD rear view backup camera delivers reliable 1080P high-definition video for truck monitoring systems. Built with GC2053 image sensor and featuring infrared night vision, IP68 waterproof rating, and wide voltage compatibility, it provides essential safety features for heavy-duty truck operations.
Key Features
- GC2053 image sensor delivers AHD 1080P clear footage with powerful low-light noise reduction
- Standard 4PIN aviation connector for direct compatibility with truck MDVR and monitor systems
- Built-in IR infrared LEDs automatically activate for reliable night vision in dark environments
- IP68 waterproof sealed housing protects against rain, mud, dust and high-pressure washing
- DC12-24V wide voltage design fits all heavy-duty truck power supply systems
- Adjustable metal mounting bracket with excellent shock resistance for rough road conditions
Product Overview
This AHD rear view backup camera utilizes the GC2053 image sensor to output stable AHD 1080P high-definition video. Featuring an industry-standard 4PIN aviation connector, it connects directly to truck MDVR or display monitors without conversion adapters. The infrared night vision system captures clear rear view images in low-light conditions, while the IP68 waterproof sealed shell ensures long-term exterior installation durability. Designed specifically for heavy trucks with 12-24V wide voltage support and shockproof adjustable bracket, this camera provides reliable reversing assistance and blind spot monitoring for truck MDVR projects.
Technical Specifications
| Product Type |
AHD Truck Rear View Backup Camera |
| Image Chip |
GC2053 CMOS Sensor |
| Resolution |
AHD 1080P |
| Night Vision |
IR Infrared LED Night Vision |
| Waterproof Rating |
IP68 |
| Working Voltage |
DC12-24V |
| Connector |
4PIN Aviation Connector |
| Lens |
Wide Angle Glass Lens |
| Working Temperature |
-30℃ ~ +70℃ |
| Matching Device |
Truck MDVR / Truck Monitor |
| Applicable Vehicle |
Heavy-duty Trucks |
| Installation |
External rear mounting with adjustable bracket |
Detailed Feature Highlights
GC2053 AHD Image Sensor with 1080P HD Output
The camera utilizes the proven GC2053 CMOS sensor for AHD 1080P high-definition video output. Built-in 3D digital noise reduction effectively suppresses grainy noise under weak light conditions, producing cleaner and smoother images than ordinary sensors. This ensures clear capture of rear obstacles, road markings, and surrounding vehicle outlines for both real-time preview on truck monitors and video recording by MDVR systems.
Universal 4PIN Aviation Connector for MDVR & Monitor
Standard 4PIN aviation plug combines power supply and video signal in one cable, supporting direct plug-and-play connection with mainstream truck MDVR and dedicated truck monitors. The locking anti-drop structure prevents loosening under vehicle vibration, simplifying wiring during fleet refitting while reducing poor contact and signal loss issues.
IR Infrared LED Auto Night Vision
Infrared LED lights automatically activate when ambient brightness drops below the trigger threshold. In dark nights, dim warehouses, or enclosed parking areas, it generates clear black-and-white monitoring images to help drivers identify pedestrians, barriers, and vehicles behind the truck. Optimized infrared lamp layout balances image brightness for safe reversing operations.
IP68 Fully Sealed Waterproof & Dustproof Housing
Full sealed IP68 waterproof structure protects the camera housing. The internal PCB circuit board features conformal coating for moisture-proof, anti-corrosion, and anti-salt spray protection. This design withstands heavy rain, mud splashing, and high-pressure water cleaning while blocking water and dust ingress to extend service life.
12-24V Wide Voltage with Surge & Reverse Protection
Wide DC12-24V input voltage supports both 12V and 24V heavy truck power systems. Built-in reverse connection protection and surge suppression chips filter sudden voltage spikes and current fluctuations during engine start-up and shutdown, protecting the image sensor and circuit from burnout.
Adjustable Shockproof Metal Mount Bracket
Sturdy metal adjustable bracket with shock-absorbing structure absorbs continuous jolts and vibration on rough roads. Users can freely adjust camera viewing angles to cover rear blind zones of large trucks. The solid bracket resists impact and deformation, ensuring stable monitoring performance for long-distance transportation.
