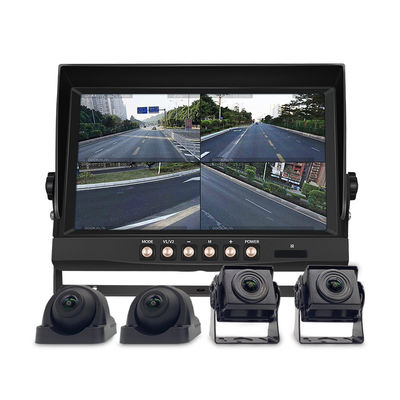

4CH 1080P Truck Camera System with 10 Inch Split Screen DVR Monitor
This professional 4-channel 1080P truck camera system integrates a 10-inch split-screen DVR monitor with multiple IP68 waterproof night-vision cameras, providing comprehensive multi-channel monitoring for heavy-duty vehicles.
Key Features
- 4-channel synchronous video input supports front, rear and dual-side cameras for full-perimeter truck monitoring
- 10-inch large split-screen DVR monitor enables multi-picture simultaneous display and local video recording
- IP68 high-grade waterproof cameras withstand heavy rain, mud splashes and harsh outdoor conditions
- Reliable night-vision performance delivers clear footage for night-time transportation
- Complete all-in-one system designed for heavy-duty trucks, buses and large commercial vehicles
- Vehicle-grade anti-vibration design adapts to bumpy long-haul driving for stable 24-hour surveillance
Technical Specifications
| Category |
Specification |
| Product Type |
4CH 1080P Truck Surveillance Camera System with 10 Inch DVR Monitor |
| Camera Resolution |
AHD 1080P |
| View Angle |
Wide angle for front / rear / side view cameras |
| Night Vision |
IR Night Vision |
| Waterproof Rating |
Cameras: IP68; Monitor: Indoor dashboard installation |
| Voltage |
DC 12-24V Wide Voltage |
| Lens |
Multi-unit high-definition glass lens |
| Screen Size |
10 Inch Split-Screen DVR LCD Monitor |
| Wired or Wireless |
Wired |
| Working Temperature |
-20℃ ~ +70℃ |
| Vehicle Compatibility |
Trucks, heavy-duty vehicles, buses, large commercial fleets |
System Capabilities
360 Degree Surround Monitoring
Equipped with four-channel access capability, this truck system connects front, rear and two side-view cameras to build full-perimeter surround monitoring. Drivers can observe surrounding pedestrians, obstacles and road conditions through split-screen output, eliminating large blind spots during lane changes, turning and reversing maneuvers.
High-Definition Night Vision

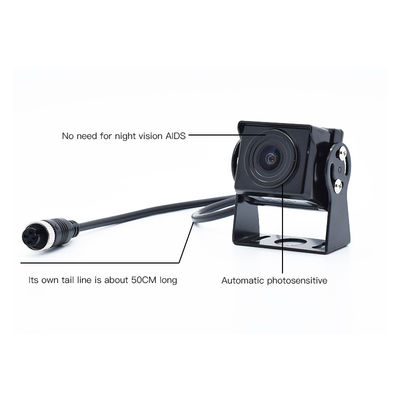

Each camera features night-vision auxiliary lights that deliver distinguishable 1080P images in dark highways, dim freight yards and night-reversing scenarios. The system maintains stable monitoring performance regardless of ambient light conditions for all-weather driving safety.
Waterproof and Dustproof Housing
All external cameras utilize IP68 highest-level waterproof and dustproof sealed housing, resisting heavy rain washing, mud splashing and dust accumulation. Camera modules maintain stable performance even under complex outdoor working environments without water ingress or short-circuit failure.
Smart Multi-View Auto Switching
The 10-inch DVR monitor supports manual split-screen mode switching and reverse-gear trigger linkage. When reversing, the rear-camera picture automatically pops up. Operators can switch between single-screen and four-split display modes according to actual driving requirements for flexible multi-view observation.
Heavy-Duty Vehicle Compatibility
Specifically developed for heavy-duty transportation scenarios, the system supports 12-24V wide-voltage power supply. With anti-vibration wiring and structural optimization, it adapts to long-haul trucks, coaches and engineering fleets, meeting continuous monitoring demands of commercial vehicle operations.
