Features Gallery Product Description Request A Quote

Features

Specifications

Highlight:

Sony CCD AHD reverse camera

700TVL night vision backup camera

MAN TGX truck backup camera

Basic Infomation

Place of Origin: China

Brand Name: KINGCROWN

Certification: ROHS

Payment & Shipping Terms

Packaging Details: Export standard package

Delivery Time: 45 days

Payment Terms: L/C,T/T

Supply Ability: 1000sets/month

Gallery

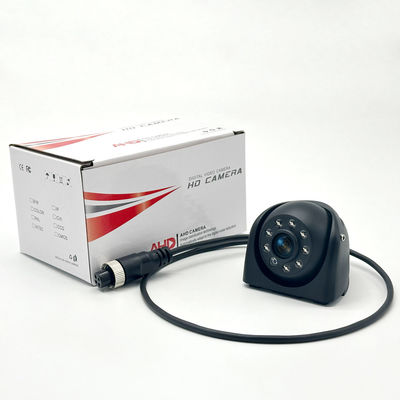

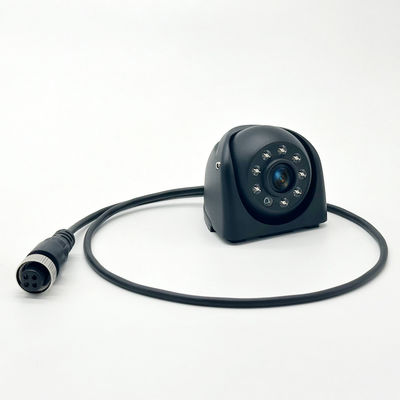

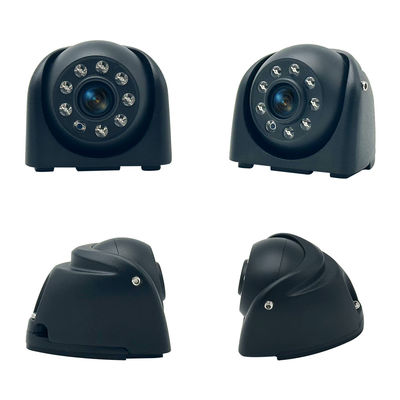

Hot Sale Sony CCD AHD Reverse Camera 700TVL Night Vision 720P 1080P Resolution Backup Camera for MAN TGX HeavyDuty Truck

Product Description

Sony CCD AHD Reverse Camera for MAN TGX Heavy-Duty Truck

This hot-selling Sony CCD AHD backup reverse camera is specially optimized for heavy-duty trucks represented by MAN TGX. It provides multiple signal output modes including analog 700TVL as well as AHD 720P and 1080P, compatible with most truck monitors and MDVR systems on the market.

Key Product Advantages

Premium Sony CCD sensor delivers sharp, low-noise vehicle monitoring images
Multi-signal output: analog 700TVL, AHD 720P and 1080P for broad device compatibility
Excellent infrared night-vision performance for clear viewing in dark conditions
Optimized mounting structure fits MAN TGX and other heavy-duty truck requirements
Vibration-resistant housing withstands strong jolts from long-haul heavy-duty trucks
Large wide-angle lens effectively reduces blind-spot risks during reversing and highway driving

Technical Specifications

Category	Parameter Value
Product Type	Heavy-Duty Truck Backup Reverse Camera
Camera Resolution	700TVL / AHD 720P / 1080P Optional
View Angle	125° Wide Angle
Night Vision	Yes, IR Infrared Night Vision
Waterproof Rating	IP68
Voltage	DC 9V-32V Wide Voltage
Lens	High-quality anti-distortion glass lens for Sony CCD sensor
Screen Size	No Screen (Camera Only)
Wired or Wireless	Wired
Working Temperature	-20℃ ~ +75℃
Vehicle Compatibility	MAN TGX, Multiple Heavy-Duty Trucks

Advanced Features

360 Degree Surround Monitoring

Matched with multi-channel MDVR and auxiliary cameras, this backup camera enables multi-view splicing to build complete surround monitoring system for heavy-duty trucks. It covers rear reversing area and cooperates with side cameras to eliminate large-vehicle blind spots, offering comprehensive visual reference for drivers during reversing, parking and long-distance transportation.

High-Definition Night Vision

Combined with Sony CCD image sensor and infrared LED array, this backup camera achieves superior low-light imaging performance. Even on dark country roads or poorly lit parking yards, it captures clear obstacles behind MAN TGX heavy-duty trucks. Multiple resolution options keep image details sharp whether working with analog or AHD digital display equipment.

Waterproof and Dustproof Housing

Adopting IP68 waterproof grade fully-sealed shell, it blocks rainwater, mud splashes and road dust. It can endure severe outdoor working conditions for heavy-duty trucks, preventing water mist and dirt from eroding internal optical components to maintain stable all-weather performance for transportation missions.

Smart Multi-View Auto Switching

Compatible with mainstream truck MDVR and display units, it supports trigger-activated view switching. Once reverse gear is engaged, rear-view picture pops up automatically. Manual switching between different camera channels is also available, bringing convenient visual operation for MAN TGX drivers under complex traffic conditions.

Suitable for Heavy-Duty and Commercial Vehicles

Tailored for heavy-duty truck operating environment, this camera uses 9-32V wide-voltage power supply and anti-vibration mechanical structure. It adapts to frequent vibration from MAN TGX and other heavy-duty trucks, avoiding picture shaking and equipment failure, and is well-suited for logistics fleets and truck modification projects.
