Features

Specifications

Highlight:

IP69K waterproof vehicle camera

1080P truck rear view camera

school bus security monitoring camera

Basic Infomation

Place of Origin: China

Brand Name: KINGCROWN

Certification: ROHS

Payment & Shipping Terms

Packaging Details: Export standard package

Delivery Time: 45 days

Payment Terms: L/C,T/T

Supply Ability: 1000sets/month

Gallery

AHD 1080P/720P IP69K Waterproof Vehicle Reverse Rear View Inside Camera Security Monitoring Camera for Truck School Bus

Product Description

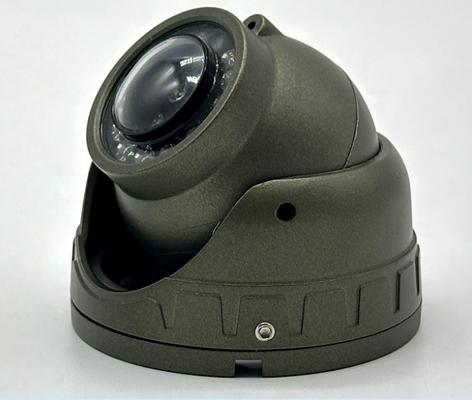

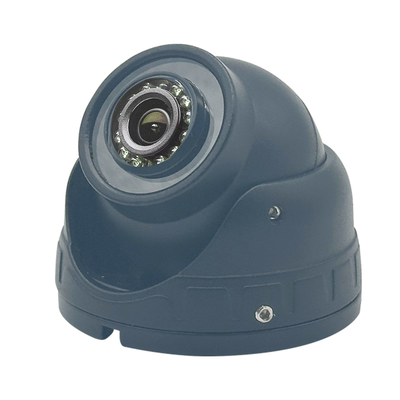

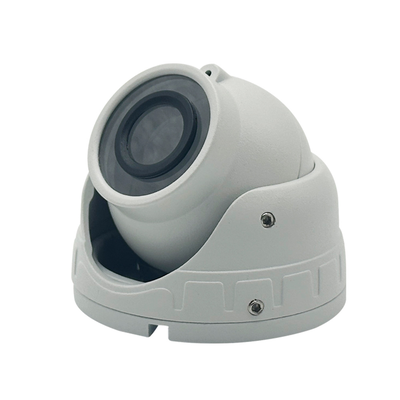

AHD 1080P/720P IP69K Waterproof Vehicle Reverse Rear View Inside Camera Security Monitoring Camera for Truck School Bus

This AHD inside vehicle rear-view security camera is specially developed for heavy-duty vehicles such as trucks and school buses. Adopting IP69K waterproof structure, it can withstand high-pressure jet washing and adapt to complex working conditions. It supports 720P and 1080P AHD signal output, matched with infrared night-vision function to realize reliable day-and-night monitoring. The built-in installation structure prevents impact damage from external objects. It works well under 12-24V wide voltage, and is widely compatible with most mobile DVR devices on the market, providing stable reverse viewing and interior security monitoring for commercial vehicles.

Key Features

IP69K high-level waterproof rating, resistant to high-pressure water washing for harsh vehicle environments
Supports AHD 1080P & 720P dual resolution, delivers clear real-time monitoring image
Compact inside-mount design, effectively avoids external collision damage
Stable performance adapted to truck and school bus 12-24V wide voltage power supply
Built-in infrared night vision, ensures clear picture under low-light conditions
Perfect compatible with vehicle mobile DVR monitoring system, easy to install

360 Degree Surround Monitoring

Cooperating with compatible vehicle monitoring systems, this camera supports seamless multi-angle splicing to realize comprehensive surround monitoring. It makes up for the visual defects of single-view cameras, realizes full blind-spot coverage around commercial vehicles, and provides complete visual data support for vehicle reversing, driving and parking operations.

High-Definition Night Vision

Adopts high-sensitivity image sensor and professional infrared night vision technology, with ultra-low illumination imaging capability. It clearly captures road conditions, obstacles and surrounding environments even in dark nights, tunnels and other low-light environments. The 1080P/720P dual resolution ensures delicate and vivid image details without blurring or smearing.

Waterproof and Dustproof Housing

Reaches industrial-grade IP69K waterproof and dustproof standard, far exceeding ordinary IP67/IP68 cameras. It can withstand high-pressure hot water flushing, heavy rain, sand and dust erosion, and is not affected by extreme weather such as high temperature and low temperature. The fully sealed housing ensures stable long-term operation in harsh working environments of commercial vehicles.

Smart Multi-View Auto Switching

Compatible with mainstream vehicle display and DVR systems, it supports smart video signal switching. It can automatically switch viewing angles and display modes according to vehicle driving states such as reversing and forward driving, realizing automatic switching of rear view and side view monitoring, improving driving safety and operation convenience.

Suitable for Heavy-Duty and Commercial Vehicles

Designed with wide voltage 9-24V and shockproof structure, it perfectly adapts to the complex working conditions of trucks, school buses, passenger buses and other commercial vehicles. It resists vibration and jitter during driving, avoids image jitter and equipment failure, and is specially optimized for long-distance transportation and daily commuter commercial vehicle scenarios.

Technical Specifications

Category	Parameter Value
Product Type	Vehicle Rear View Security Monitoring Camera
Camera Resolution	AHD 1080P / 720P Dual Optional
View Angle	120° Wide Angle
Night Vision	Yes, Infrared IR Night Vision Support
Waterproof Rating	IP69K Heavy-Duty Waterproof & Dustproof
Voltage	DC 9V-24V Wide Voltage
Lens	High-Definition Glass Lens, Anti-distortion
Screen Size	No Screen (Camera Only)
Wired or Wireless	Wired
Working Temperature	-20℃ ~ +75℃
Vehicle Compatibility	Truck, School Bus, Bus, Commercial Heavy-Duty Vehicles
