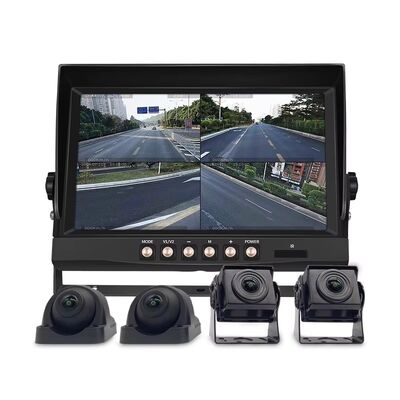

4-Channel DVR Monitor 1080P HD AHD Camera System
Complete quad screen rearview CCTV backup camera system designed specifically for Scania buses and heavy-duty trucks.
Key Product Advantages
- 4-channel integrated DVR monitor supports quad-screen simultaneous display for multi-direction real-time vehicle monitoring
- AHD 1080P high-definition signal delivers sharp image details for enhanced driving and reversing safety
- Complete CCTV backup camera system perfectly matched for Scania bus and heavy-duty truck 12-24V power environment
- Built-in DVR recording function stores surveillance footage for fleet management and accident review
- Flexible display modes including single-screen, split-screen, and auto-switch to satisfy diverse monitoring requirements
- Supports OEM & ODM customization for bulk fleet renovation and commercial vehicle aftermarket modification projects
System Overview
This 4-Channel DVR monitor set is a complete AHD 1080P rearview CCTV camera system specially designed for Scania buses and heavy-duty trucks. It enables quad-screen display to monitor front, rear, left, and right vehicle surroundings simultaneously. The built-in DVR module supports local video recording for security evidence keeping. Operating under wide 12-24V voltage, the entire system runs stably in complex commercial-vehicle working environments, effectively reducing blind-spot collision risks during turning, reversing, and travel.
Advanced Features
360 Degree Surround Monitoring
Connect four matched cameras to achieve full-vehicle surround monitoring. Quad-screen output presents multi-angle views simultaneously to eliminate large-vehicle blind-spot hazards.
High-Definition Night Vision
Supporting AHD cameras adopt high-performance sensors to capture clear pictures at night or in dim environments, ensuring reliable monitoring for night driving and reversing operations.
Waterproof and Dustproof Housing

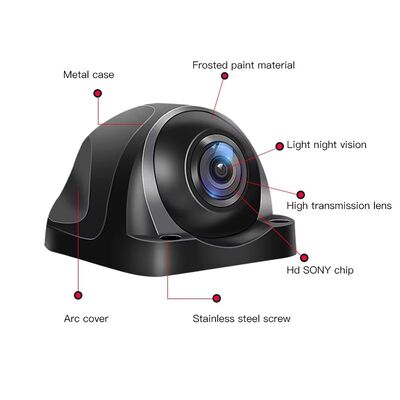

All external backup cameras meet IP68 waterproof standards, resisting rain, dust, and high-pressure washing to withstand harsh outdoor conditions of trucks and buses.
Smart Multi-View Auto Switching
Automatically switches to full-screen reversing view when engaging reverse gear; turn-signal triggers can switch to corresponding side views while other channels maintain background recording.
Heavy-Duty and Commercial Vehicle Compatibility
Optimized for Scania buses and trucks, with compatibility for other brands of trucks, trailers, and coaches, meeting safety monitoring demands for logistics and public-transport fleets.
Technical Specifications
| Category |
Specification |
| Product Type |
4-Channel DVR Monitor AHD 1080P CCTV Camera System |
| Video Resolution |
AHD 1080P HD |
| Display Mode |
Quad Screen / Single Screen Optional |
| Built-in Function |
DVR Video Recording |
| Input Channel |
4-Channel Camera Input |
| Working Voltage |
DC 12-24V |
| External Camera Rating |
IP68 Waterproof |
| Storage |
Support TF Card for video storage |
| Installation |
Cab interior mounting |
| Working Temperature |
-20℃ ~ +70℃ |
| Vehicle Compatibility |
Fit for Scania Bus & Heavy-Duty Truck |
| Connection Mode |
Wired |
