Gallery

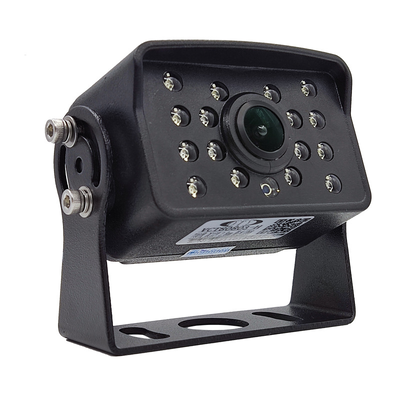

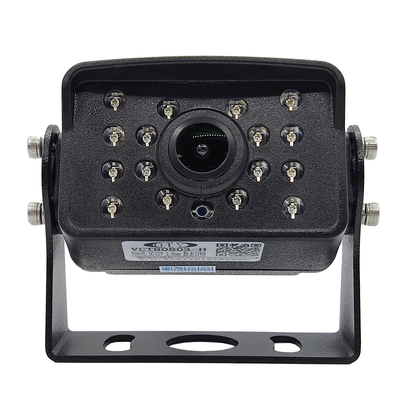

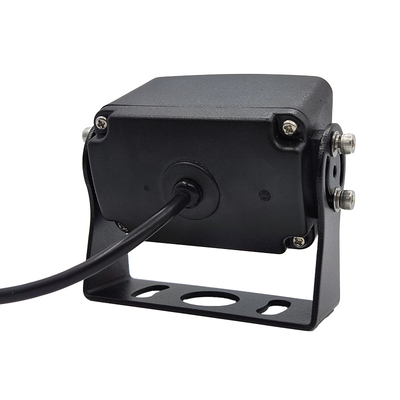

Factory Supply Heavy Duty CCD Color Rear View Camera IP69 170Degree 12/24V 4 PIN 1080P Camera for Hino Truck Van Trailer

Product Description

Heavy Duty CCD Color Rear View Camera

Factory-supplied heavy-duty CCD color rear-view camera built for tough working conditions of trucks, vans and trailers. Features high-performance CCD color sensor delivering vivid 1080P video with IP69 protection rating for high-pressure jet washing, mud, and heavy dust resistance.

Key Selling Points

Heavy-duty CCD color sensor delivers true-to-life color imaging for commercial vehicle reversing monitoring
IP69 high-level protection grade withstands high-pressure water washing and harsh outdoor environments
170-degree wide angle expands rear-view field and reduces blind spots for large-size vehicles
DC12-24V wide-voltage design adapts to various truck, van and trailer electrical systems
Standard 4-pin aviation connector guarantees stable anti-vibration signal transmission
Factory direct supply supports bulk wholesale and customized OEM solutions for fleet projects

Feature Highlights

360 Degree Surround Monitoring

This heavy-duty rear-view camera works as an independent rear monitoring unit. When connected with front and side cameras to multi-channel DVR, it forms camera groups to achieve partial surround monitoring, improving overall situational awareness for trucks and trailers.

High-Definition Night Vision

CCD sensor optimizes image display under low-light conditions. Retains distinguishable color image at night or in dim yards, helping drivers detect rear obstacles effectively when reversing large trucks and trailers.

Waterproof and Dustproof Housing

IP69 high-grade sealed housing stands up to high-pressure washing, mud erosion and heavy road dust. Prevents water and dust intrusion even under severe weather conditions for long-term stable operation.

Smart Multi-View Auto Switching

Matched with compatible vehicle monitor or multi-channel mobile DVR, this rear-view camera can be triggered by reverse gear signal to auto switch to rear-view display. Users can manually toggle between different camera channels for multi-angle observation.

Heavy-Duty Commercial Vehicle Compatibility

Developed specifically for heavy-duty scenarios with DC12-24V wide-voltage compatibility. Widely adopted for logistics fleets, transportation companies and commercial vehicle modification projects.

Technical Specifications

Category	Value
Product Type	Heavy-Duty CCD Color Rear View Backup Camera
Camera Resolution	1080P CCD Color Image
View Angle	170 Degree Wide Angle
Night Vision	Enhanced low-light night-vision performance
Waterproof Rating	IP69
Voltage	DC 12-24V Wide Voltage
Lens	170° wide-angle glass lens
Screen Size	Not included, match external vehicle monitor or mobile DVR
Wired or Wireless	Wired, 4-PIN aviation connector
Working Temperature	-20℃ ~ +70℃
Vehicle Compatibility	Truck, Van, Trailer and other 12-24V heavy-duty commercial vehicles
