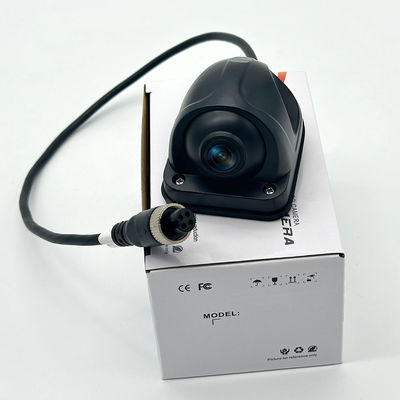

IP69K Waterproof IR Night Vision Bus Side View Backup Camera, Side Blind‑Zone Surveillance Reverse Camera for Trucks and Buses

Product Description

IP69K Waterproof IR Night Vision Bus Side View Backup Camera

Professional side blind-zone surveillance reverse camera designed specifically for trucks and buses to enhance safety and visibility.

Key Product Advantages

IP69K high-level waterproof rating withstands high-pressure hot-water washing for heavy-duty vehicle applications
Built-in IR infrared night vision delivers identifiable images in dim and dark driving conditions
Professional side-view design effectively monitors side blind zones to reduce collision risks for large vehicles
Rugged anti-vibration housing adapts to bumpy road conditions of trucks and buses
Wide-angle field of view covers side pedestrian and obstacle detection for safe lane-changing
Optimized structural fit for trucks and buses, supports fleet-oriented OEM & ODM customization

Product Overview

This IP69K waterproof IR night-vision side-view backup camera is purpose-built for trucks and buses to solve large-vehicle blind-zone hazards. With IR infrared night-vision function, it maintains usable monitoring performance at night or under poor lighting conditions. The IP69K protection grade enables resistance against high-pressure jet washing, dust and mud. Its shock-resistant casing copes with continuous vibration generated during commercial vehicle operation. Installed on vehicle side position, it assists drivers to observe side pedestrians and obstacles. Compatible with matching on-board monitor systems, this camera supports mass fleet procurement with flexible OEM and ODM solutions.

Advanced Feature Highlights

360 Degree Surround Monitoring

When matched with front, rear and opposite-side cameras, this side-view unit builds complete surround monitoring for trucks and buses. Drivers can obtain full-range surrounding information and avoid accidents caused by invisible blind zones.

High-Definition Night Vision

Equipped with IR infrared lights, the camera outputs clear monitoring pictures in total darkness. It guarantees reliable blind-zone observation for passenger buses and freight trucks during night transportation tasks.

Waterproof and Dustproof Housing

IP69K high-standard sealed housing resists high-pressure water jet washing, dust and mud contamination. It keeps stable working performance even after frequent cleaning and exposure to harsh outdoor environments.

Smart Multi-View Auto Switching

Connected with compatible vehicle DVR monitor, the camera signal supports multi-split-screen display and trigger-based automatic view switching. Drivers can check side blind-zone status rapidly without losing focus on driving.

Suitable for Heavy-Duty and Commercial Vehicles

12-24V wide-voltage input and anti-shock construction adapt to heavy-duty working conditions. It is widely applied for passenger buses, logistics trucks and other large commercial transport fleets.

Technical Specifications

Product Type	Side View Blind-Zone Backup Camera
Camera Resolution	AHD 1080P
View Angle	130° Wide View Angle
Night Vision	IR Infrared Night Vision
Waterproof Rating	IP69K
Voltage	DC 12-24V
Lens	High-Definition Glass Wide-Angle Lens
Screen Size	No Built-in Screen
Connection Type	Wired
Working Temperature	-25℃ ~ +75℃
Vehicle Compatibility	Trucks, Buses, Heavy-Duty Commercial Vehicles
