12.3 Inch Dual Screen Smart Electronic Rearview Mirror System, HD Blind Spot Camera Monitor for Truck Bus Coach Heavy Duty Vehicles
Product Overview
Truck Bus BSD Intelligent Vision Monitor with Anti-glare & WDR technology. This CMS Blind Spot Electronic Rear View Mirror features dual-screen split HD streaming monitor capability, designed specifically as a commercial truck side blind zone monitoring system for heavy-duty vehicles.
Product Introduction
The CMS electronic rearview mirror is specially developed for heavy trucks, buses and large vans. Equipped with a long vertical split display screen, it can show two-channel video from front and rear side cameras simultaneously.
The anti-glare high-brightness panel guarantees visible pictures under strong outdoor sunshine. The rotatable metal bracket allows angle adjustment freely to fit different truck cab structures. With excellent shock resistance, the whole set can run stably on rough mountain roads and highways, greatly reducing side scraping and collision risks during lane changes and turns for large vehicles.
Key Features
- Dual-screen split HD streaming monitor
- Anti-glare high-brightness LCD panel
- Multi-channel HD AHD signal input
- Rotatable metal bracket for flexible installation
- Excellent shock resistance for rough terrain
- Wide Dynamic Range (WDR) technology
- Reduces blind spot collision risks
Technical Specifications
| Category |
Specification |
| Product Type |
Blind Spot Electronic Rearview Mirror |
| Screen Type |
High-Bright Anti-Glare LCD |
| Working Voltage |
DC11-28V |
| Working Temperature |
-25℃ ~ +75℃ |
| Working Current |
1000mA/24V |
| Video Input |
Multi Channel HD AHD Signal |
| Video Output |
Number 2K |
| Monitor Resolution |
12.3 inch 1920x720 |
| Applicable Vehicles |
Trucks, Buses, Large Vans, Heavy Commercial Vehicles |
Feature Highlights

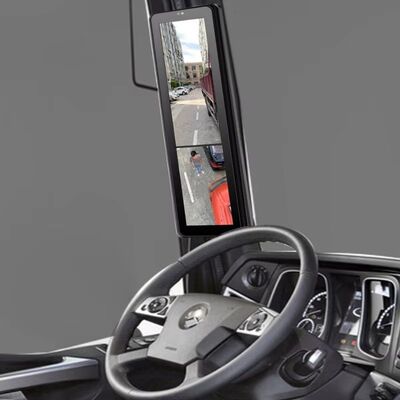

Dual-Screen Blind Spot Monitoring
The vertical split screen realizes two-way monitoring. Drivers can observe front tire obstacles and rear side traffic at a glance, making up for the viewing dead angle of traditional mechanical rearview mirrors for large trucks.
Strong Light Suppression Technology
The high-bright LCD screen effectively resists strong sunlight reflection. Pictures will not turn white under direct sunshine, ensuring clear road vision no matter in daytime outdoor driving.
Shockproof Heavy-Duty Structure
The whole machine adopts reinforced anti-vibration internal components. It can keep stable picture transmission on bumpy rural roads and long haul routes without screen flickering or blackout.
Flexible Adjustable Installation
360-degree rotatable mounting bracket can be fixed on A-pillar freely. No need to drill and destroy the truck interior, suitable for most mainstream heavy commercial vehicle models.
Wide Voltage Compatibility
Supports both 12V and 24V vehicle power supply. It can be widely matched with light trucks, heavy-duty semi-trailers, passenger buses and engineering vehicles for fleet safety upgrading.
Standard Q&A
Q1: Is this monitor fit for 24V heavy trucks?
A1: Yes, it supports 12V and 24V wide voltage input, compatible with all kinds of large commercial vehicles including semi-trailers and coaches.
Q2: Does the screen support automatic turn signal switching?
A2: We offer optional auto-switching function triggered by turn signals; you can choose split fixed display or auto-switch mode as required.
Q3: Can I get customized bracket and wire length?
A3: Customized bracket shape, cable length and shell appearance are available for bulk OEM orders.
Q4: What is the quality warranty term?
A4: We provide 12-month free warranty against non-human damage for the whole monitor set.

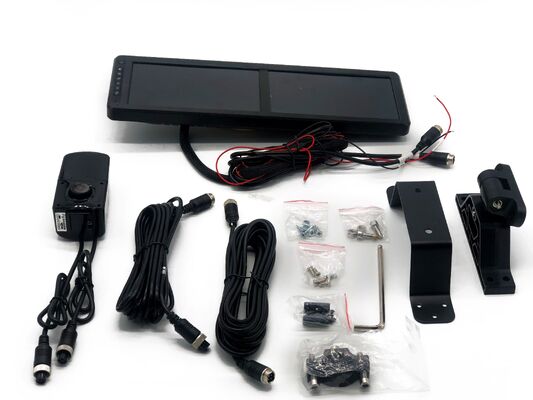

Q5: Do you supply matched side cameras together?
A5: We have matched dual-lens side view cameras with IP67 waterproof grade, you can buy the complete monitoring kit in one order.
