Features

Specifications

Product Type: Blind Spot Electronic Rearview Mirror

Screen Type: High-Bright Anti-Glare LCD

Brightness: Strong Light Suppression

Working Temperature: -25℃ ~ +75℃

Working Voltage: DC11-28V

Applicable Vehicles: Trucks, Buses, Large Vans, Heavy Commercial Vehicles

Working Current: 1000mA/24V

Monitor Resolution: 12.3 Inch 1920x720

Video Input: Multi Channel HD AHD Signal

Video Output: Number 2K

Basic Infomation

Place of Origin: China

Brand Name: KING CROWN

Certification: RoHS

Payment & Shipping Terms

Packaging Details: Export standard package

Delivery Time: 45days

Payment Terms: L/C,T/T

Supply Ability: 1000sets/month

Gallery

12.3 Inch 1080P AHD CMS Blind Spot Electronic Rear View Mirror with Anti-glare WDR for Trucks and Buses

Product Description

12.3 Inch AHD 1080P CMS Blind Spot Electronic Rear View Mirror

Product Overview

Truck Bus BSD Intelligent Vision Monitor with Anti-glare & WDR technology. This CMS Blind Spot Electronic Rear View Mirror features dual-screen split HD streaming monitor capability, designed specifically as a commercial truck side blind zone monitoring system for heavy-duty vehicles.

Product Introduction

The CMS electronic rearview mirror is specially developed for heavy trucks, buses and large vans. Equipped with a long vertical split display screen, it can show two-channel video from front and rear side cameras simultaneously.

The anti-glare high-brightness panel guarantees visible pictures under strong outdoor sunshine. The rotatable metal bracket allows angle adjustment freely to fit different truck cab structures. With excellent shock resistance, the whole set can run stably on rough mountain roads and highways, greatly reducing side scraping and collision risks during lane changes and turns for large vehicles.

Key Features

Dual-screen split HD streaming monitor
Anti-glare high-brightness LCD panel
Multi-channel HD AHD signal input
Rotatable metal bracket for flexible installation
Excellent shock resistance for rough terrain
Wide Dynamic Range (WDR) technology
Reduces blind spot collision risks

Technical Specifications

Category	Specification
Product Type	Blind Spot Electronic Rearview Mirror
Screen Type	High-Bright Anti-Glare LCD
Working Voltage	DC11-28V
Working Temperature	-25℃ ~ +75℃
Working Current	1000mA/24V
Video Input	Multi Channel HD AHD Signal
Video Output	Number 2K
Monitor Resolution	12.3 inch 1920x720
Applicable Vehicles	Trucks, Buses, Large Vans, Heavy Commercial Vehicles

Feature Highlights

Dual-Screen Blind Spot Monitoring

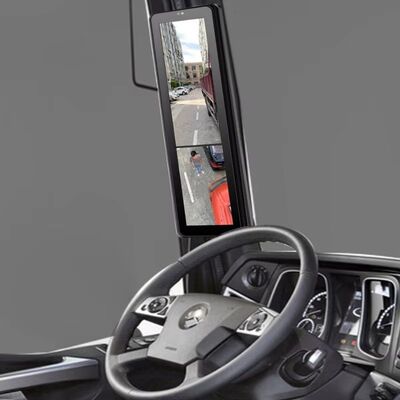

The vertical split screen realizes two-way monitoring. Drivers can observe front tire obstacles and rear side traffic at a glance, making up for the viewing dead angle of traditional mechanical rearview mirrors for large trucks.

Strong Light Suppression Technology
The high-bright LCD screen effectively resists strong sunlight reflection. Pictures will not turn white under direct sunshine, ensuring clear road vision no matter in daytime outdoor driving.

Shockproof Heavy-Duty Structure
The whole machine adopts reinforced anti-vibration internal components. It can keep stable picture transmission on bumpy rural roads and long haul routes without screen flickering or blackout.

Flexible Adjustable Installation
360-degree rotatable mounting bracket can be fixed on A-pillar freely. No need to drill and destroy the truck interior, suitable for most mainstream heavy commercial vehicle models.

Wide Voltage Compatibility
Supports both 12V and 24V vehicle power supply. It can be widely matched with light trucks, heavy-duty semi-trailers, passenger buses and engineering vehicles for fleet safety upgrading.

Standard Q&A

Q1: Is this monitor fit for 24V heavy trucks?
A1: Yes, it supports 12V and 24V wide voltage input, compatible with all kinds of large commercial vehicles including semi-trailers and coaches.

Q2: Does the screen support automatic turn signal switching?
A2: We offer optional auto-switching function triggered by turn signals; you can choose split fixed display or auto-switch mode as required.

Q3: Can I get customized bracket and wire length?
A3: Customized bracket shape, cable length and shell appearance are available for bulk OEM orders.

Q4: What is the quality warranty term?
A4: We provide 12-month free warranty against non-human damage for the whole monitor set.

Q5: Do you supply matched side cameras together?

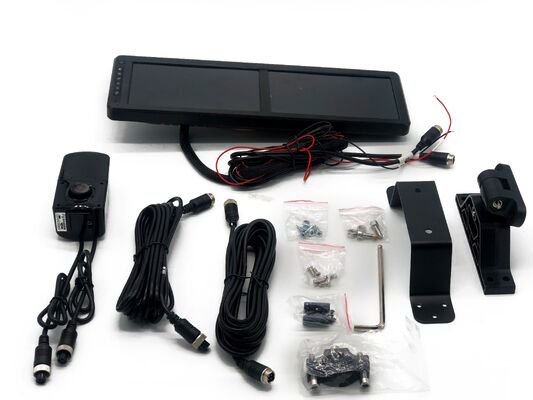

A5: We have matched dual-lens side view cameras with IP67 waterproof grade, you can buy the complete monitoring kit in one order.
