AHD 1080P HD Blind Spot Camera with 140° Wide Angle IP67 Waterproof Side View Monitoring System for Vehicles

30pts
MOQ
Negotiation
Price
AHD 1080P HD Blind Spot Camera with 140° Wide Angle IP67 Waterproof Side View Monitoring System for Vehicles
Features Gallery Product Description Request A Quote
Features
Specifications
Waterproof Rating: IP67 Dustproof And Waterproof Grade
View Angle: 140° Wide-angle Composite Dual Lens
Night Vision: Built-in Infrared LED Low-light Night Vision Function
Voltage: DC 12V Standard Vehicle Working Voltage
Working Temperature: -35℃ ~ +80℃
Camera Resolution: AHD 1080P HD
Basic Infomation
Place of Origin: China
Brand Name: KING CROWN
Certification: RoHS
Model Number: K602
Payment & Shipping Terms
Packaging Details: Export standard package
Delivery Time: 45days
Payment Terms: L/C,T/T
Supply Ability: 1000sets/month
Product Description
AHD 1080P Dual-Lens Blind Spot Camera with Monitor 140° Wide Angle IP67 Waterproof Vehicle Side View Monitoring System for Car Van SUV
Product Overview

AHD 1080P Dual-Lens Blind Spot Camera with Monitor - 140° Wide Angle IP67 Waterproof Vehicle Side View Monitoring System for Car Van SUV

Key Features
  • Dual-lens design realizes simultaneous front wheel and rear side observation to eliminate vehicle blind zones effectively
  • AHD 1080P high definition delivers sharp real-time image for daytime driving monitoring
  • 140° ultra-wide viewing angle covers more road conditions without dead vision
  • IP67 waterproof structure works stably in rainy and muddy outdoor driving environments
  • Paired high-definition display shows dual video streams clearly at one screen
  • Compact shark fin shell is easy to install without damaging the car body
Product Introduction

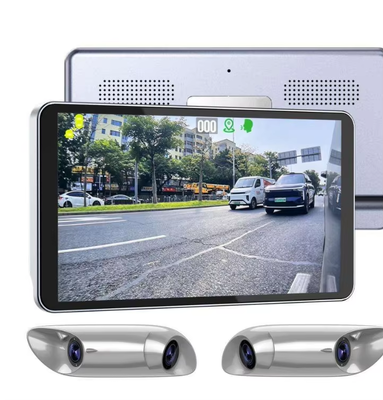

The dual view blind spot monitoring kit includes two AHD 1080P dual-lens cameras and a dedicated HD display. Each camera features a 140° wide viewing angle to capture front wheel and rear side road conditions at the same time.

With IP67 waterproof grade, the cameras can resist rain splash and dust erosion all year round. The on-board monitor presents two-channel real-time footage to help drivers avoid side collision risks during lane change and turning.

This wired side monitoring system fits most passenger cars, vans and light commercial vehicles perfectly, greatly improving driving safety on urban roads and highways.

Technical Specification
Category Parameter Value
Product Type Dual Lens Blind Spot Side View Camera System
Camera Resolution AHD 1080P
View Angle 140 Degree Wide Angle
Night Vision Infrared Night Vision
Waterproof Rating IP67
Voltage 12V DC Vehicle Power Supply
Lens Dual Glass Lenses
Screen Size 5 Inch HD Display
Wired or Wireless Wired Transmission
Working Temperature -20℃ ~ +70℃
Vehicle Compatibility Cars, SUV, Vans, Light Commercial Vehicles
Feature Highlights
360 Degree Surround Monitoring

The dual-lens structure of each camera achieves dual-angle monitoring, which covers the front tire area and rear blind zone of the vehicle. Combined with two side cameras, it forms comprehensive side road observation, effectively filling the visual gap of rearview mirrors and preventing scraping accidents during turning and overtaking.

High-Definition Night Vision

Equipped with high-sensitivity image sensor and infrared fill lights, this AHD 1080P camera maintains clear color images at dusk and night. Dim road conditions can be displayed on the monitor without blurred picture, guaranteeing safe driving on poorly lit urban roads.

Waterproof and Dustproof Housing

The whole camera shell adopts sealed injection molding process and reaches IP67 waterproof standard. It can work normally in heavy rain, car washing and dusty road environments, and will not be damaged by water ingress or sand erosion for long-term outdoor use.

Smart Multi-View Auto Switching

The matched HD monitor supports dual-screen split display. Drivers can watch two groups of side video at the same time. It also supports automatic picture switching when turning, so you do not need to manually adjust the screen while driving.

Suitable for Heavy-Duty and Commercial Vehicles

The side view monitoring system is widely compatible with 12V vehicles. Besides ordinary passenger cars, it also works well for vans, light trucks and small commercial vehicles, which is an essential safety upgrade for both private cars and fleet vehicles.

Frequently Asked Questions
Q1: What kinds of vehicles can this blind spot camera fit?
A1: It is designed for all 12V vehicles including sedans, SUVs, vans and light commercial vehicles, suitable for most civilian cars after simple installation.
Q2: Can you provide OEM and ODM customization service?
A2: Yes, we support customized logo printing, housing appearance, wire length and menu language for bulk orders to meet different market requirements.
Q3: How long is your product warranty period?
A3: We offer a 12-month warranty for all camera and monitor parts. Any non-artificial quality failure can enjoy free replacement within the warranty period.
Q4: What is your minimum order quantity?
A4: Our MOQ is 1 set for sample testing, and we accept bulk wholesale orders for auto accessory distributors.
Q5: Will you provide installation guidance and technical support?
A5: We supply detailed wiring manuals and video tutorials. Our engineering team offers online technical support to solve installation and debugging problems remotely.
