Universal Rear View Camera for Sprinter Vans and RV Applications
Rear Parking Camera with Low-Light Night Vision

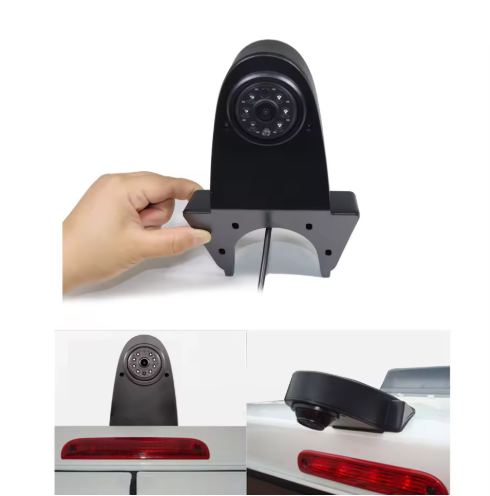

The Universal Rear View Camera for Sprinter Vans, RVs, and Commercial Vehicles is engineered as a robust rear-vision solution for large vehicles requiring flexible installation, high reliability, and system-level compatibility. Designed with an external adjustable metal bracket, this camera is suitable for vans, camper conversions, RVs, and light commercial vehicles where vehicle-specific brake-light cameras are not applicable.
Technical Specifications
| Item |
Specification |
| Product Type |
Universal Rear View / Reverse Camera |
| Application |
Sprinter Van, RV, Camper Van, Universal Van |
| Mounting Type |
External bracket mount (adjustable) |
| Housing Material |
Automotive-grade metal + coated surface |
| Image Sensor |
CMOS (SONY optional) |
| Video Output |
CVBS (PAL / NTSC) or AHD |
| Resolution |
CVBS: 648×488 / AHD: 720P / 1080P |
| Viewing Angle |
140° - 170° wide angle |
| Lens Type |
Multi-layer optical glass |
| Night Vision |
Low-light / IR LED optional |
| Minimum Illumination |
≤0.1 Lux |
| Image Mode |
Mirror / Normal selectable |
| Operating Voltage |
DC 12V (24V optional via converter) |
| Waterproof Rating |
IP67 |
| Shock & Vibration |
Automotive vibration resistant |
| Operating Temperature |
−30°C to +70°C |
| Connector |
RCA / 4-Pin aviation optional |
| System Compatibility |
OEM head unit, aftermarket monitor, MDVR |
| Installation |
Surface mount, no vehicle-specific cutting |
| Certification |
CE / RoHS |
| OEM / ODM |
Logo, bracket shape, sensor, cable customizable |
Universal Mounting Architecture

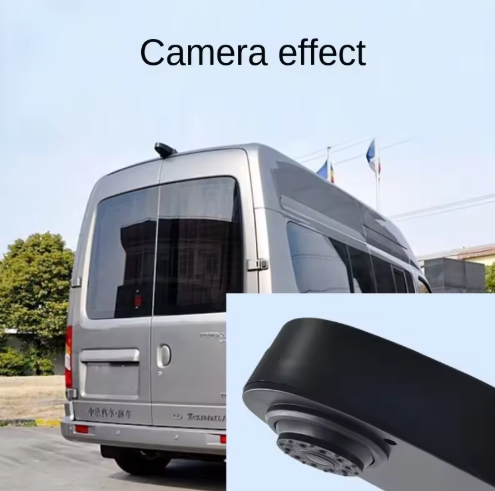

Unlike vehicle-specific molded cameras, this model uses a reinforced metal mounting bracket that allows installation on flat or slightly curved rear surfaces. The adjustable structure enables precise angle alignment, making it ideal for high-roof vans, box vans, and RVs with extended rear overhangs. This flexibility simplifies installation across mixed vehicle fleets and conversion projects.
Imaging & Visibility
The camera integrates an automotive-grade CMOS image sensor with support for CVBS or AHD output formats, ensuring compatibility with both legacy and modern display systems. The wide-angle optical lens expands rear coverage, reducing blind zones during reversing, docking, and parking operations.
Optional low-light or IR-assisted night vision ensures consistent image performance in poorly lit environments such as campsites, loading bays, underground parking, and nighttime fleet operations.
Mechanical Durability
Constructed with a metal housing and sealed optical assembly, the camera withstands vibration, weather exposure, and temperature variation common in commercial and recreational vehicle use. The IP67 waterproof rating ensures reliable operation during rain, vehicle washing, and long-term outdoor exposure.
System Integration
Operating on DC 12V, the camera integrates easily with OEM head units, aftermarket monitors, and mobile DVR systems. Multiple connector options support flexible wiring architectures, making the camera suitable for single-vehicle retrofits as well as fleet-scale installations.
Application Scenarios
- Sprinter vans and derivatives
- RVs and camper van conversions
- Delivery and logistics vans
- Service and utility vehicles
- Fleet vehicles with mixed body types
OEM & Fleet Customization
For OEM programs and fleet projects, the camera supports customization including:
- Image sensor and resolution selection
- Output format (CVBS / AHD)
- Cable length and connector type
- Bracket design and branding
This makes it an ideal component for system integrators, conversion workshops, and fleet solution providers seeking a standardized rear-vision camera across multiple vehicle platforms.
