Features

Specifications

Product: AHD / CVBS Compatible Brake Light Camera For VW T5 T6 Infotainment Systems

Warranty: 1 Year

OEM, ODM: Support

Product Type: Brake Light Integrated Reverse Camera

Vehicle Compatibility: VW Transporter T5 / T6 (2010–2017)

Installation Position: High Mount Third Brake Light

Housing Type: OEM Replacement Brake Lamp Housing

Image Sensor: CMOS (SONY Optional)

Video Output: CVBS (PAL / NTSC) Or AHD

Resolution: CVBS: 648×488 / AHD: 720P / 1080P

Highlight:

Volkswagen T5 T6 brake light camera

high mount rear view camera

vehicle-specific brake light camera

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KING CROWN

Certification: RoHS

Payment & Shipping Terms

Packaging Details: Carton box

Delivery Time: 45 days

Payment Terms: T/T,L/C

Supply Ability: 1000 sets per month

Gallery

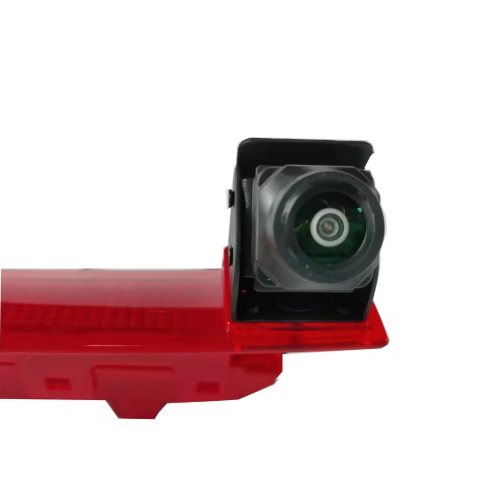

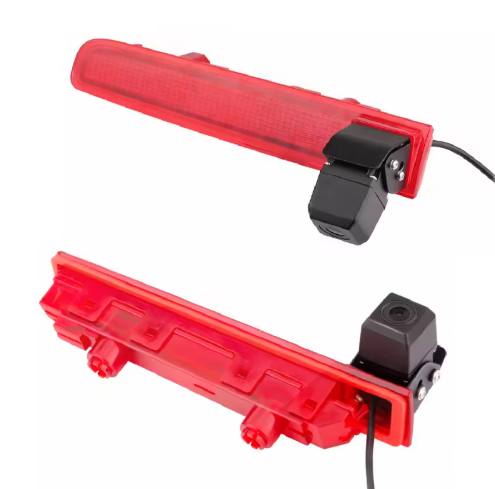

Vehicle-Specific High Mount Brake Light Camera for Volkswagen T5 / T6

Product Description

Vehicle-Specific High Mount Brake Light Camera for Volkswagen T5 / T6

High Mount Stop Light Camera for Enhanced Rear Safety

The Brake Light Integrated Reverse Camera for VW Transporter T5 / T6 (2010-2017) is a vehicle-specific rear vision solution engineered for OEM-style replacement, commercial van fleets, and professional retrofit installations. By integrating the camera module directly into the original high mount brake light position, this system delivers reliable rear visibility while maintaining factory appearance and structural integrity.

Unlike universal add-on cameras, this design replaces the original third brake light assembly, eliminating the need for external brackets, drilling, or body modification. This approach is particularly suitable for fleet vehicles, service vans, and logistics fleets where installation consistency, durability, and vehicle aesthetics are critical.

Technical Specifications

Item	Specification
Product Type	Brake Light Integrated Reverse Camera
Vehicle Compatibility	VW Transporter T5 / T6 (2010-2017)
Installation Position	High mount third brake light
Housing Type	OEM replacement brake lamp housing
Image Sensor	CMOS (SONY optional)
Video Output	CVBS (PAL / NTSC) or AHD
Resolution	CVBS: 648×488 / AHD: 720P / 1080P
Viewing Angle	140° - 170° wide angle
Night Vision	Low-light / IR LED optional
Minimum Illumination	≤0.1 Lux
Operating Voltage	DC 12V
Waterproof Rating	IP67
Operating Temperature	−30°C to +70°C
Lens Type	Multi-layer optical glass lens
Image Mode	Mirror / Normal selectable
Connector	RCA / 4-Pin aviation optional
Compatibility	OEM head unit, aftermarket monitor, MDVR
Material	Automotive-grade ABS + sealed lens
Certification	CE / RoHS
OEM / ODM Support	Logo, output, connector, LED type customizable

OEM-Fit Mechanical Design

The brake light housing is molded to match the VW T5 / T6 body contours, ensuring precise fitment and secure mounting. Factory mounting points are retained, providing vibration resistance and long-term stability even under demanding driving conditions. The integrated structure protects the camera lens from physical impact, road debris, and environmental exposure.

Imaging Performance

The camera is equipped with an automotive-grade image sensor, supporting CVBS for legacy systems or AHD 720P / 1080P for modern displays. The wide-angle lens provides broad rear coverage, improving situational awareness during reversing, docking, and parking in confined spaces.

Optional low-light or IR-assisted night vision ensures dependable image clarity in low illumination environments such as underground parking, early morning routes, or nighttime delivery operations.

Environmental Reliability

Designed for commercial vehicle use, the camera assembly meets IP67 waterproof standards, allowing safe operation in rain, snow, vehicle washing, and dusty environments. Internal sealing and lens bonding processes protect critical components from moisture ingress and temperature fluctuations.

System Integration

Operating on DC 12V, the camera is compatible with OEM head units, aftermarket infotainment systems, and fleet monitoring solutions. Multiple connector options enable easy integration into existing wiring architectures, supporting both individual vehicle upgrades and large-scale fleet deployment.

Fleet & Professional Applications

This brake light camera system is widely applicable to:

Commercial transport vans
Delivery and logistics fleets
Service and maintenance vehicles
Municipal and utility vans
OEM and dealer retrofit programs

OEM and ODM customization options are available, including branding, output format, connector type, and regional video standards, making it suitable for international fleet projects and system integrators.
