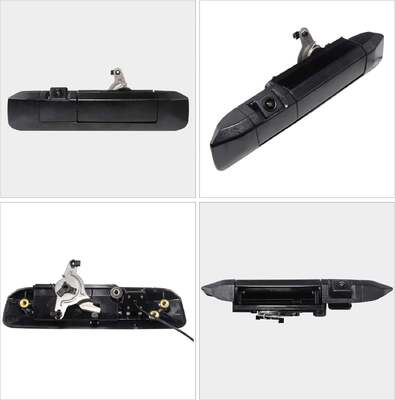

Wide-Angle Reverse Parking Camera Integrated into Tailgate Handle for Toyota Tacoma

This Tailgate Handle Integrated Reverse Camera for Toyota Tacoma is a vehicle-specific rear visibility solution engineered to match the original tailgate handle geometry and exterior styling of the Tacoma platform. Designed for OEM-style replacement, the camera integrates seamlessly into the tailgate assembly, preserving the factory appearance while adding reliable rear-view functionality.

Unlike universal aftermarket cameras that require drilling or exposed mounting brackets, this system replaces the original tailgate handle or trim panel, enabling a non-destructive installation. This makes it particularly suitable for OEM programs, fleet retrofits, body builders, and professional upfitters, where consistency, durability, and vehicle integrity are essential.

The camera housing is molded from automotive-grade ABS with a surface finish matched to OEM interior and exterior trim. The compact lens module is recessed into the handle structure, reducing exposure to impact, debris, and weather while maintaining a natural rearward viewing angle aligned with the vehicle's centerline.

By positioning the camera at tailgate level, the system provides clear visibility of obstacles, hitch points, loading zones, and low-profile objects directly behind the vehicle—critical for pickup trucks used in worksite, fleet, or off-road environments.

The camera supports CVBS (PAL/NTSC) and optional AHD video output, allowing integration with a wide range of factory infotainment systems and aftermarket displays. A wide-angle lens (up to 170°) delivers a broad rear field of view, improving situational awareness during reversing, parking, and trailer alignment.

Low-light sensitivity ensures usable image quality in dusk, night, and indoor parking conditions. Selected variants support IR or enhanced low-illumination performance for vehicles operating in poorly lit environments such as warehouses, construction sites, or rural locations.

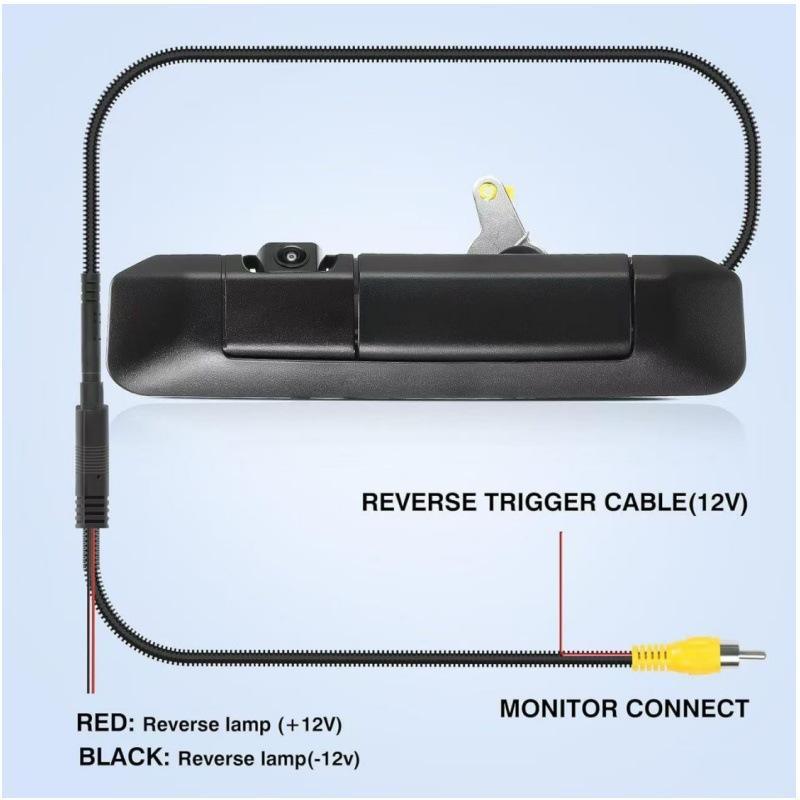

Operating on the vehicle's 12V electrical system, the camera can be triggered via the reverse signal or integrated into continuous display configurations depending on system design. Standard RCA output ensures compatibility with:

• OEM head units (via interface modules)
• Aftermarket monitors and mirror displays
• Mobile DVR and fleet recording systems

Optional connector formats are available to meet specific OEM or integrator wiring standards.

Engineered for real-world vehicle use, the camera assembly is sealed to IP67 waterproof standards, protecting internal electronics from rain, washing, dust, and mud. The robust enclosure and fixed mounting design provide resistance to vibration and thermal cycling common in pickup truck operation.

The operating temperature range of −30 °C to +70 °C supports reliable performance in extreme climates, making the system suitable for both urban fleets and rugged outdoor applications.

This tailgate camera solution is designed for:

• Toyota Tacoma OEM replacement or upgrade programs
• Fleet vehicles (utility, service, municipal)
• Pickup trucks used for logistics, construction, and maintenance
• Off-road and recreational vehicles requiring enhanced rear visibility

For OEM customers and system integrators, the platform supports customization including:

• Sensor and resolution selection
• Connector and cable specification
• Branding or private labeling
• Head-unit compatibility tuning

This flexibility makes the product suitable for long-term fleet deployment, regional aftermarket programs, and OEM sourcing initiatives.
