Features

Specifications

Product: AHD Rear View Camera For Fiat Doblo / Opel Combo Vans

Warranty: 1 Year

OEM, ODM: Support

Product Type: Brake Light Type Reverse Camera

Vehicle Compatibility: Fiat Doblo (2010– ), Opel Combo (2011–2018)

Mounting Position: High-mount Stop Lamp (3rd Brake Light)

Image Sensor: CMOS / AHD Sensor (OEM Selectable)

Video System: AHD / CVBS (PAL / NTSC Optional)

Resolution: 720P / 1080P (AHD), 480/600TVL (CVBS)

Highlight:

integrated brake light camera

commercial vehicle backup camera

rear view camera system

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KING CROWN

Certification: RoHS

Payment & Shipping Terms

Packaging Details: Carton box

Delivery Time: 45 days

Payment Terms: T/T,L/C

Supply Ability: 1000 sets per month

Gallery

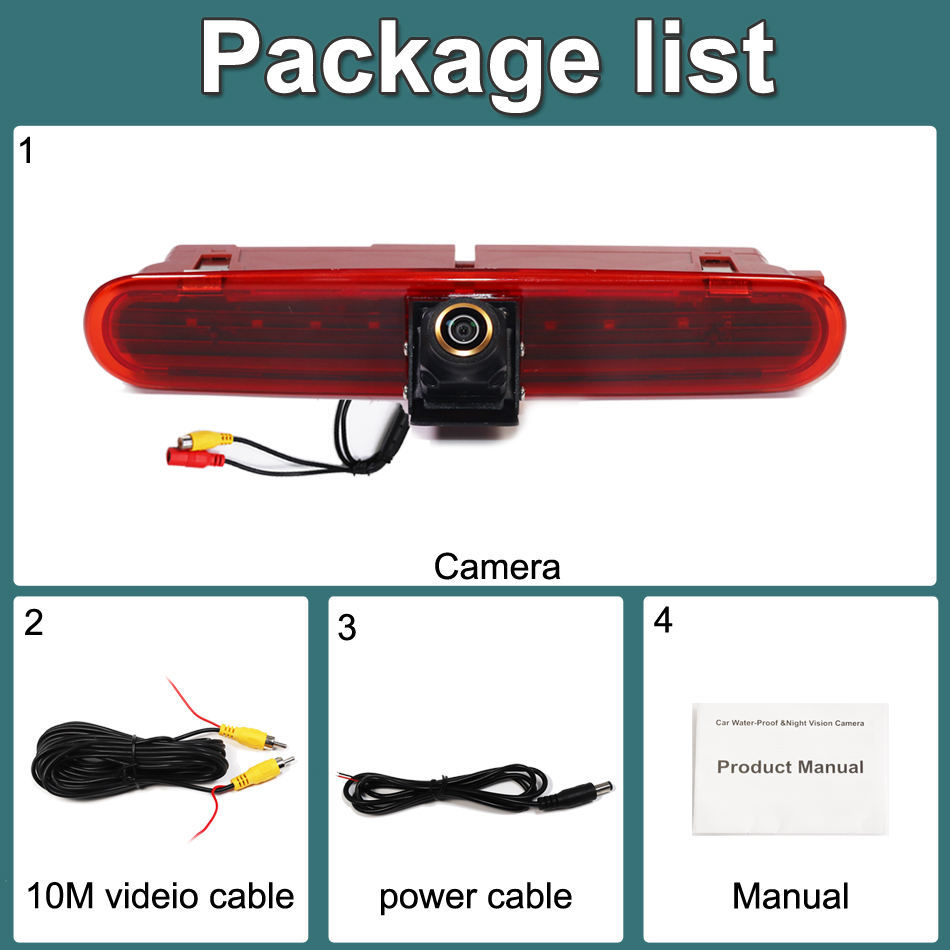

Integrated Brake Light Camera System for Light Commercial Vehicles

Product Description

Integrated Brake Light Camera System for Light Commercial Vehicles

Fleet Safety Rear Camera for Fiat Doblo & Opel Combo

This Brake Light Type Reverse Camera is an OEM-engineered rear-view solution specifically designed for Fiat Doblo (2010 - ) and Opel Combo (2011-2018) light commercial vehicles. By integrating the camera module directly into the high-mount stop lamp housing, the system provides a factory-style appearance while significantly improving rear visibility for professional driving environments.

Technical Specifications

Item	Specification
Product Type	Brake Light Type Reverse Camera
Vehicle Compatibility	Fiat Doblo (2010- ), Opel Combo (2011-2018)
Mounting Position	High-mount stop lamp (3rd brake light)
Image Sensor	CMOS / AHD Sensor (OEM selectable)
Video System	AHD / CVBS (PAL / NTSC optional)
Resolution	720P / 1080P (AHD), 480/600TVL (CVBS)
Viewing Angle	120°-170° wide angle
Night Vision	IR LEDs / low-light enhancement
Minimum Illumination	0.01 Lux (with IR)
Waterproof Rating	IP67 / IP68
Housing Material	Automotive-grade ABS + sealed lens
Operating Voltage	DC 12V (±10%)
Operating Temperature	-20°C to +70°C
Video Output	RCA / OEM connector optional
Reverse Trigger	Supported
Certification	CE / RoHS
OEM Customization	Logo, cable length, connector, mirror image
Application	Fleet vans, cargo vans, service vehicles

OEM-Integrated Mechanical Design

The camera is housed within a vehicle-specific third brake light enclosure, engineered to match the original lamp geometry and mounting points. This design eliminates the need for body drilling or external brackets, ensuring non-destructive installation and long-term structural stability. The sealed housing maintains original rear aesthetics while protecting the optical module from water ingress, dust, vibration, and road contaminants.

Optimized Rear Visibility for Commercial Use

Mounted at a higher position than conventional bumper cameras, the brake light camera delivers a broader and more natural rear perspective, reducing blind zones directly behind the vehicle. This elevated viewing angle is particularly effective for cargo vans operating in urban delivery, fleet logistics, parking-restricted environments, and loading docks, where precise reversing control is critical.

Imaging Performance & Signal Compatibility

The camera supports both AHD (720P/1080P) and CVBS video standards, making it compatible with a wide range of aftermarket and OEM monitors, head units, and MDVR systems. A wide-angle lens (up to 170°) ensures lane-edge visibility without excessive distortion, while optional mirror/normal image switching allows flexible system integration.

Low-light performance is enhanced through infrared LED support or starlight-level sensors, enabling stable imaging during night operations, indoor parking, or poorly lit delivery zones. This ensures consistent visual feedback regardless of time or environment.

Environmental Reliability for Fleet Operation

Designed for continuous outdoor exposure, the camera meets IP67/IP68 waterproof standards and operates reliably across a wide temperature range. The sealed lens assembly and automotive-grade electronics withstand vibration, thermal cycling, and frequent vehicle washing—key requirements for fleet and commercial vehicle deployment.

System Integration & OEM Customization

This product is engineered as a platform-ready OEM component. Cable length, connector type, image orientation, branding, and signal format can be customized to align with specific fleet platforms or vehicle electronics architectures. It integrates seamlessly with reverse trigger systems and aftermarket parking displays, enabling rapid deployment across mixed vehicle fleets.

Typical Applications

Fleet safety upgrades for Fiat Doblo & Opel Combo
Urban delivery and courier vans
Service and utility vehicles
Parking assistance systems for LCVs
OEM / ODM rear-view camera programs
