Name: Radar Reverse Parking System with LED Distance Visualization and Audible Alerts
Brand: Shenzhen Jinsuifangyuan Technology Co., Ltd.
SKU: BG-S6S-YYFM
Price: 201.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Alarm Volume: 70-80dB (30cm)

Alarm Type: Bi Bi Buzz

Probe Size: 22*20mm

Waterproof: IP67

Suitability: Universal

Color: Black

Highlight:

Radar reverse parking system with LED

Car parking sensor with audible alerts

Night vision camera with distance visualization

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: KINGCROWN

Certification: RoHs

Model Number: BG-S6S-YYFM

Payment & Shipping Terms

Packaging Details: Export standard package

Delivery Time: 45 days

Payment Terms: T/T,L/C

Supply Ability: 1000sets/month

Gallery

Radar Reverse Parking System with LED Distance Visualization and Audible Alerts

Product Description

Radar Reverse Parking System with LED Distance Visualization and Audible Alerts

Ensure your safety and ease of parking with our High-Quality Car Parking Radar System. Designed to provide drivers with real-time feedback about obstacles around the vehicle, this advanced system uses 8 ultrasonic sensors and a digital control box to detect objects both in front and behind your car. Whether you're reversing into a tight parking space or maneuvering in a narrow lane, this system provides clear alerts through sound, visual light bars, and distance data on an LED display.

With intuitive features like automatic sensor activation, a customizable alarm volume, and weatherproof sensors, you can trust this system to keep your vehicle protected in any conditions. Easy to install and available in multiple colors, this parking radar system is the perfect solution for any vehicle, ensuring a safer and more confident driving experience.

Product Profile

This High-Quality Car Parking Radar System is designed to make parking and reversing easier and safer with the help of 8 ultrasonic sensors, a digital control box, and a LED display. The system activates different sensors based on the vehicle's speed and braking conditions to ensure smooth and safe parking in narrow spaces.

With a 7-speed adjustable volume and intuitive sound and light bar alerts, this parking radar system provides clear real-time feedback about the proximity of obstacles around the vehicle. It is easy to install with a detailed manual and the included drill head, allowing for a customized fit. The system is available in multiple colors to match your vehicle's style and comes with weatherproof sensors for reliable performance in all conditions.

Product Features

Automatic Sensor Activation:
- Reversing Mode: The 4 rear sensors and 2 front sensors are activated during reverse driving to detect obstacles and provide alerts.
- Normal Driving Mode: When braking, the 4 front sensors are activated to assist the driver in passing through narrow passages safely. The system remains active for about 15 seconds after releasing the brake.
Obstacle Detection:

The rear sensors help prevent collisions by detecting obstacles behind the vehicle, while the front sensors prevent rubbing or scraping when moving forward in tight spaces.
LED Display with Light Bars:

The LED display features 6 light bars, one for each sensor, allowing the driver to easily identify the location of obstacles and their distance, enhancing awareness and safety.
7-Speed Volume Adjustability:

The system comes with a 7-speed volume adjustable function, allowing the driver to control the alarm sound based on personal preference or the environment.
Multi-Alert System:

The system alerts the driver through sound, numbers, and light bars, providing multiple signals to ensure the driver receives clear warnings of nearby obstacles.

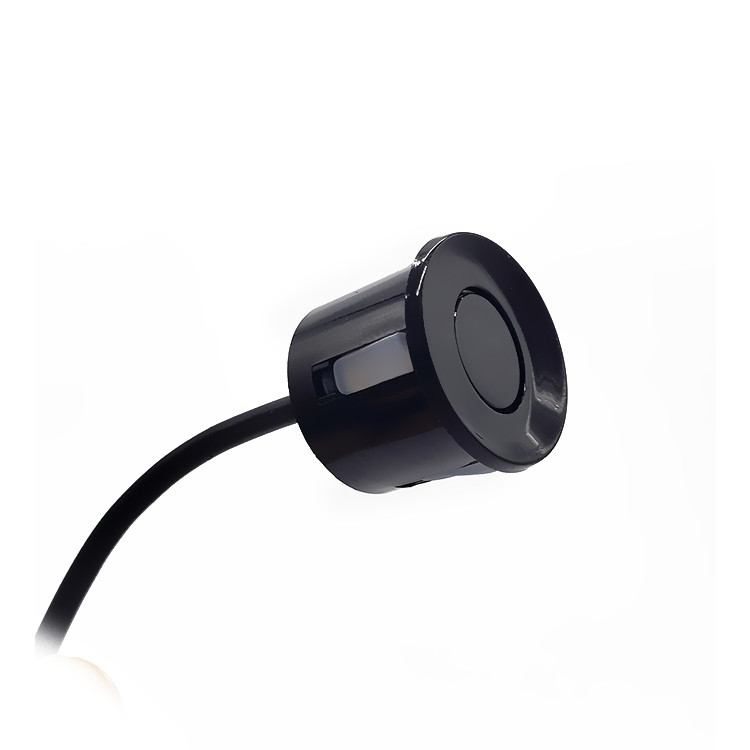

High-Quality Ultrasonic Sensors:

The system includes 8 weatherproof ultrasonic sensors designed to withstand various environmental conditions, ensuring consistent and reliable performance in rain, snow, or extreme temperatures.
Easy Installation:

The system is simple to install with a detailed English manual. It includes all the necessary parts, including a universal hole saw and a drill head for drilling holes in the bumper, making installation straightforward.
Multi-Color Options:

Available in multiple colors (Black, Red, Grey, White, Fiat Red, Champagne Gold, Blue, Silver), allowing you to match the sensors to your vehicle's color or aesthetic preferences.
Comprehensive Coverage:

Cable Length: The front sensors come with a 6m/20ft cable, and the reversing sensors come with a 2.3m/7.5ft cable, providing ample length for installation on most vehicle types.

Technological Parameters

Package Size	25x21x5.5cm
Current consumption	20mA-200m
Power Supply	DC12V
Weight	1.75KG
Operating temperature	-40+80degree
Alarm volume	70-80dB (30cm)
Working Voltage	9-36V
Alarm Type	Bi Bi Buzz
Maximum power	2.5W
Probe size	22*20mm
Applicable car	Universal car
Waterproof	IP67

FAQ

Q1: What is your product warranty policy?

A: We offer a standard 12-month warranty for all our products, ensuring quality and reliability.

Q2: What is your minimum order quantity (MOQ)?

A: The MOQ varies depending on the product. For many products, we accept small order quantities.

Q3: What payment methods do you accept?

A: We accept payment via T/T (Telegraphic Transfer) or LC (Letter of Credit).

Q4: What is the lead time for samples and bulk orders?

A: The sample lead time is typically 5-7 days. For bulk orders, the lead time will be confirmed based on the product and quantity.

Q5: What after-sales support do you provide?

A: We offer technical support online and suggest spare parts when placing an order. We are happy to assist customers with any installation issues or other concerns.
