0.3 To 1.5m Audio Alarm Ultrasonic Parking Guidance System Auto Backup Warning Systems

Product Details

Place of Origin: China

Brand Name: KINGCROWN

Certification: RoHS

Model Number: BG-S8S-YYYY

Payment & Shipping Terms

Minimum Order Quantity: 30pts

Price: Negotiation

Packaging Details: Export standard package

Delivery Time: 45 days

Payment Terms: L/C, T/T

Supply Ability: 1000sets/month

Get Best Price
Contact Now
Specifications
High Light:

0.3m ultrasonic parking guidance system

,

IP67 auto backup warning systems

,

1.5m automatic parking sensor

Product Name:
Paking Sensor
Alarm Type:
Bi Bi Buzz
Waterproof:
IP67
Detection Distance:
0.3-2M(3M)
Alarm Distance:
0.3-1.5M(2M)
Tolerance Scope:
<1cm
Effective Range:
<0.9m
Working Frequency:
Operating Voltage
Certification:
RoHS
Product Name:
Paking Sensor
Alarm Type:
Bi Bi Buzz
Waterproof:
IP67
Detection Distance:
0.3-2M(3M)
Alarm Distance:
0.3-1.5M(2M)
Tolerance Scope:
<1cm
Effective Range:
<0.9m
Working Frequency:
Operating Voltage
Certification:
RoHS
Description
0.3 To 1.5m Audio Alarm Ultrasonic Parking Guidance System Auto Backup Warning Systems

Packing sensor BG-S8S-YYYY Radar Display Audio Alarm ultrasonic Car auto Parking sensor system

The product specification chart:

Package Size 30x21x5.5cm
Current consumption
20mA-200m
Power Supply DC12V
Weight 0.85KG
Operating temperature -40+80degree
Alarm volume 70-80dB (30cm)
Working Voltage 9-36V
Alarm Type Bi Bi Buzz
Maximum power 2.5W
Probe size 22*20mm
Applicable car Universal car
Waterproof IP67





The product support service are as follows:

  1. The product OEM service will be negotiation.
  2. We provide full technical guidelines for installation
  3. We provide all necessary parts for installation needs
  4. We provide complete after-sales service for all customers.

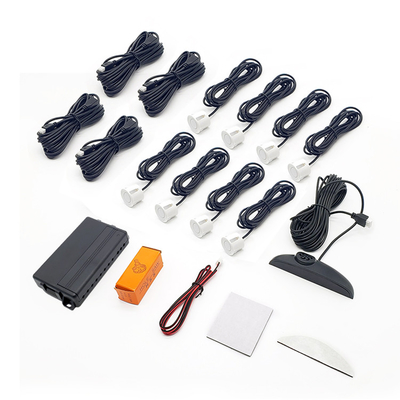

0.3 To 1.5m Audio Alarm Ultrasonic Parking Guidance System Auto Backup Warning Systems 0

  • About this item

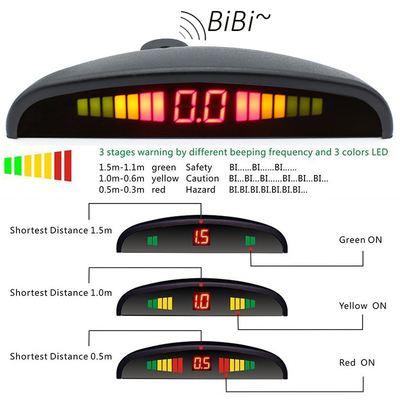

  • A small light(dot)indicates proper functioning of the system after being activated
  • Digital distance display of obstacle
  • LED's(green,yellow and red)indicate different distances as well as orientation of the obstacle
  • Different alert beeping intervals indicate different distances of the obstacle
  • all Round Recessed Sensors
  • Rate voltage:12v
  • Operation voltage:9-15v
  • Rated current:20mA-200m
  • Detecting distance:0.3-2.0m
  • Ultrasonic Frequency:40KHZ
  • Working temperature:-40--80 degree
  • Numeral and color LED display
  • Alarm by three-step Bibi sound
  • Left and right obstacle indication
  • Numeral display from 2.0m to0m


0.3 To 1.5m Audio Alarm Ultrasonic Parking Guidance System Auto Backup Warning Systems 1





0.3 To 1.5m Audio Alarm Ultrasonic Parking Guidance System Auto Backup Warning Systems 2



FAQ:

Q1, What is your product warranty terms?

A: Generally, we provide 12 months warranty for all customer.

Q2, What is your MOQ requirement?

A: Depend on different product, small quantity order can be acceptable.

Q3, What kind of payment term can be acceptable?

A: T/T or LC is acceptable.

Q4, What is the lead time of the samples and mass goods?

A: The lead time of the sample: 5-7days. The mass goods should be negotiation.

Q5, What is your after sales service rule?

A: Generally, we give suggestion of spare parts when customer place order. And we will provide technical support online, during the customer meet problem of installation.
