AHD VGA1 Night Vision DVR Birds Eye View Camera For Car 360 Degree RoHS

Product Details

Place of Origin: China

Brand Name: KINGCROWN

Certification: RoHS

Model Number: BG-SBT-1080H

Payment & Shipping Terms

Minimum Order Quantity: 30pts

Price: Negotiation

Packaging Details: Export standard package

Delivery Time: 45 days

Payment Terms: L/C, T/T

Supply Ability: 1000sets/month

Get Best Price
Contact Now
Specifications
High Light:

AHD VGA1 birds eye view camera

,

360 degree bird view camera for car

,

night vision dvr camera RoHS

Product Name:
Rear View Reversing Camera
Video Output:
CVBS AHD VGA 1
Sensor:
1080p
Night Vision:
Night Vision Support
TV System:
PAL NTSC Optional
White Balance:
Automatically
Working Temperature (Deg.C):
20-+60
Video Input:
4CH 1080P AHD
Certification:
RoHS
Product Name:
Rear View Reversing Camera
Video Output:
CVBS AHD VGA 1
Sensor:
1080p
Night Vision:
Night Vision Support
TV System:
PAL NTSC Optional
White Balance:
Automatically
Working Temperature (Deg.C):
20-+60
Video Input:
4CH 1080P AHD
Certification:
RoHS
Description

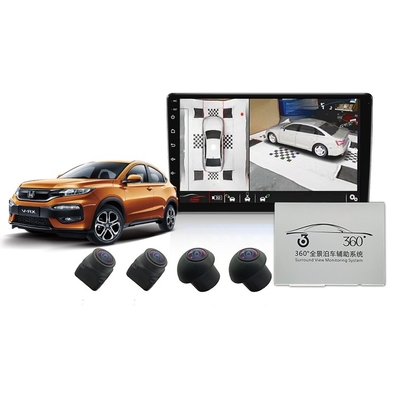

AHD VGA1 Night Vision DVR Birds Eye View Camera For Car 360 Degree RoHS

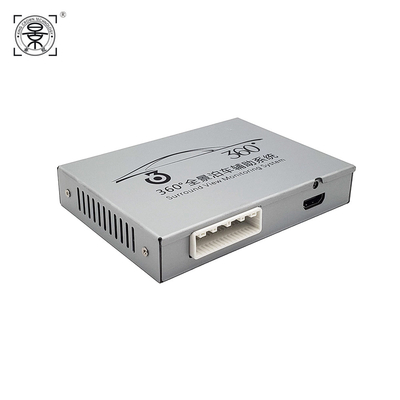

BG-SBT-1080H The supplier provides a 360-degree panoramic camera system, waterproof night vision DVR with 4 universal cam



production description

Type

Reverse Camera, Backup camera

View Angle

170°

Function

Waterproof, NIGHT VIEW

Voltage

DC 12V

Lens

6 Glass Lens

Sensor

Sony IMX 307

Night vision

Night Vision Support

Night Vision Support

PAL NTSC Optional

Material

Metal

Working Temperature (Deg.C)

20-+60



AHD VGA1 Night Vision DVR Birds Eye View Camera For Car 360 Degree RoHS 0

  • About this item

  • 1.Please check your car signal system before purchasing, PAL car may not fit!
  •
  • 2.Dark Light Technology Sensor: Specially developed with the latest Dark Light technology POMILE rear camera built-in the lates
  •
  • 3. Image Sensors: CCD Image Sensor Effective Pixels: 982 x 600 Pixels Upload: 520 TV Lines TV System: NTSC System Lens Angle (Deg.): 172° Diagonal Low Illumination0.1 Lux Waterproof Class: IP68 supply cable: 6 meters Power supply: DC12V x 1V
  •
  • 4.Highly sensitive CMOS and digital high-definition image processor, it is maximum pixel 982*600, the TVL is up to 900TVL. For the different output format, the output is 520TVL, but it is clearer than other cameras whose original edition is 300TVL, 420TVL or 480TVL
  •
  • 5.Rear camera with IP68 IP rate. It used strict waterproof ness and large waterproof materials, so it's waterproof function much better than IP67, you absolutely don't have to worry about water, fog or fog inside.
  •



AHD VGA1 Night Vision DVR Birds Eye View Camera For Car 360 Degree RoHS 1



The product support service are as follows:

  1. The product OEM service will be negotiation.
  2. We provide full technical guidelines for installation
  3. We provide all necessary parts for installation needs
  4. We provide complete after-sales service for all customers.
